Unity Studio

Enable or disable a property on a GameObject

Learn how to use a Logic script to enable or disable properties on a GameObject.
Read time 1 minuteLast updated 4 hours ago
This example shows you how to set up a script that enables or disables the gravity of a GameObject. You can also use these steps to alter different properties.
1

Create a button in your UI Canvas

  1. Select UI Canvas in the Hierarchy panel.
  2. Right-click and select UI > Button to create a new button.
2

Create a Cube in your scene

  1. Right-click in the Hierarchy panel and select Primitives > Cube to create a new Cube GameObject.
  2. Select the cube. The Inspector window for that cube opens.
  3. Within the Physics component, disable Use Gravity.
3

Create a new Logic script

  1. In the Project panel, select the My Logic folder.
  2. Select Add (+).
  3. Select New Script. Unity Studio creates a new Logic script in the folder.
  4. To rename your script, right click the script and select Rename.
4

Add the script to the Cube

  1. Select the Cube from the Hierarchy panel.
  2. From the Inspector window, select Add Component.
  3. Choose your Logic script from the list.
5

Set up the logic in the Logic Editor

  1. In the Project panel, double-click the Logic script to open the Logic Editor.
  2. Create the following variables:
  • Unique name :
    Cube_Rigidbody
    , Type :
    Rigidbody
  • Unique name :
    Button
    , Type :
    Object
  1. Set up the following logic to enable the gravity when the user clicks the button:
  • Drag a When event listener into the Logic Editor.
  • Place a Clicked on node in the When node's Event socket.
  • Drag the
    Button
    variable in the Clicked on node.
  • Drag a Set variable value action into the When node.
  • In the variables, expand the
    Cube_Rigidbody
    properties. Drag the useGravity property to the first socket of the Set variable value node. Set its value to
    True
    .
Example Logic script to set the cube to be non-interactive.

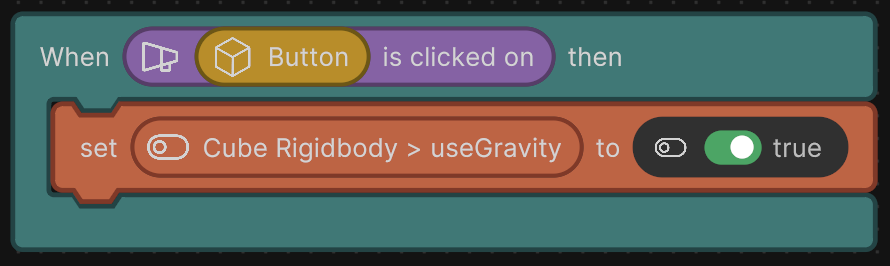

Example Logic script to enable or disable a property of a GameObject.

6

Connect your script references

  1. In the Hierarchy panel, select the GameObject that has your Logic script attached.
  2. Drag the cube from the Hierarchy panel into the
    Cube_Rigidbody
    variable references in your script component.
  3. Drag the button from the Hierarchy panel into the
    Button
    variable reference in your script component.
  4. Press Play to test your scene. When you click on the button, it activates gravity on the cube.
