Asset Transformer SDK

Visual Footprint

Use this feature to compute the visual footprint of 3D assets, providing a 2D representation of their spatial extent for efficient rendering and analysis in the Pixyz SDK.
Read time 2 minutesLast updated 21 hours ago
API function: algo.getVisualComparisonFootprint This function is used in order to compare the visual difference between two sets of occurrences. The result is in millimeters, in the world space.
Visual Comparison

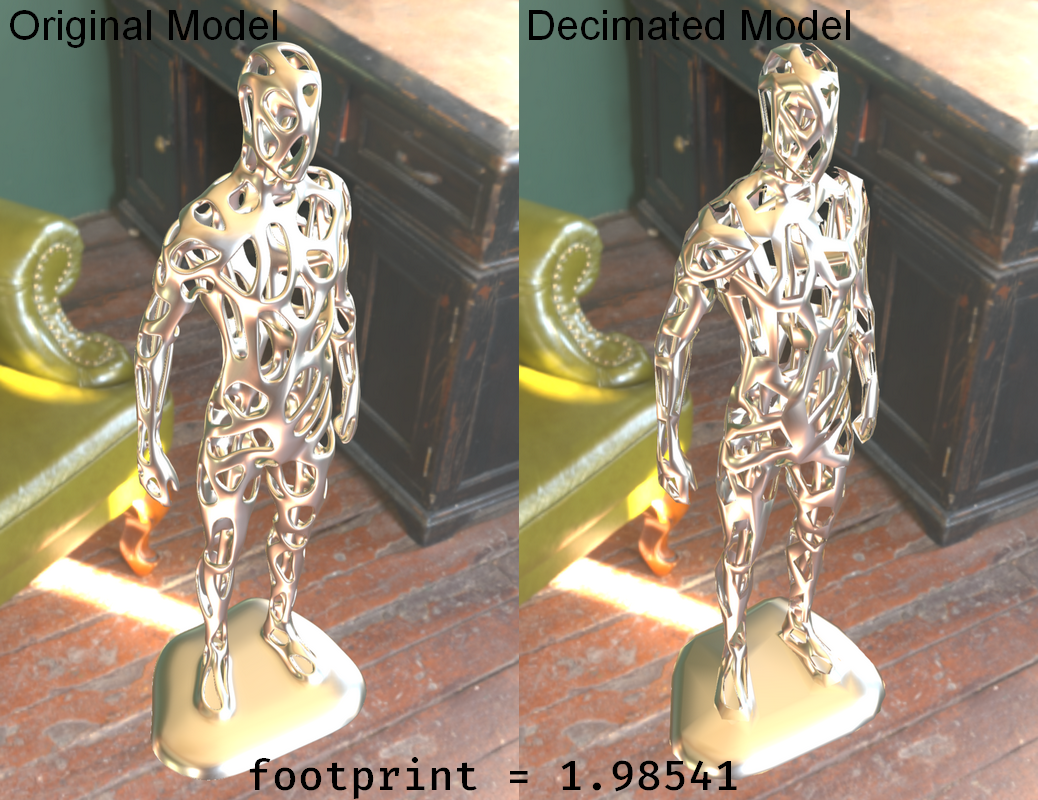

 For instance, here we have an original model and a decimated version of it. We may want to create a HLOD based on the visual error between these two models. To do so, we use the algo.getVisualComparisonFootprint function.

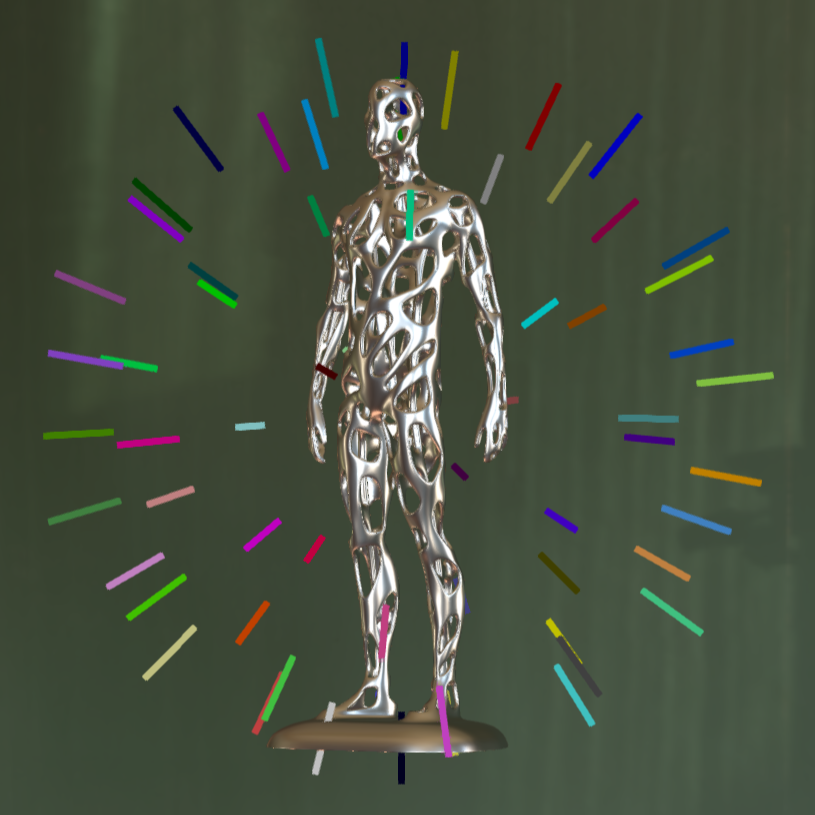

Viewpoints
 It takes two sets of occurrences that will be visually compared. It will create
nb_viewpoints
viewpoints around the scene from where a visual difference footprint will be computed based on an image size controlled by the parameter
resolution
.

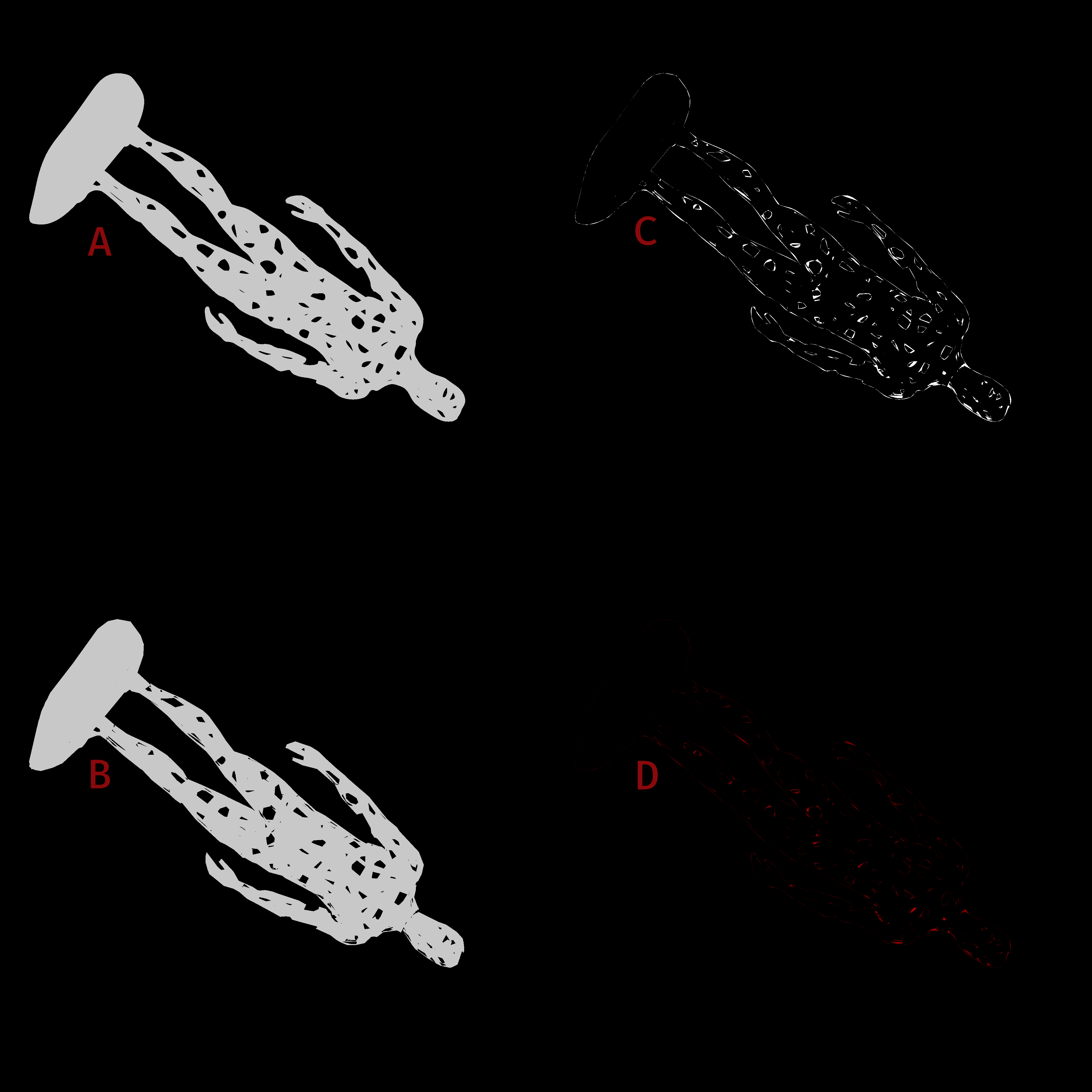

Comparison steps
 On the image above, we see one of these viewpoints, where
A
is the original model and
B
is a decimated version of it. The "visual difference" is then computed and shown in
C
. Finally, we compute the maximum error between the two images based on this "visual difference", as shown in
D
. The maximum error of all viewpoints is returned. We can use the result to create a HLOD with the right visual error.

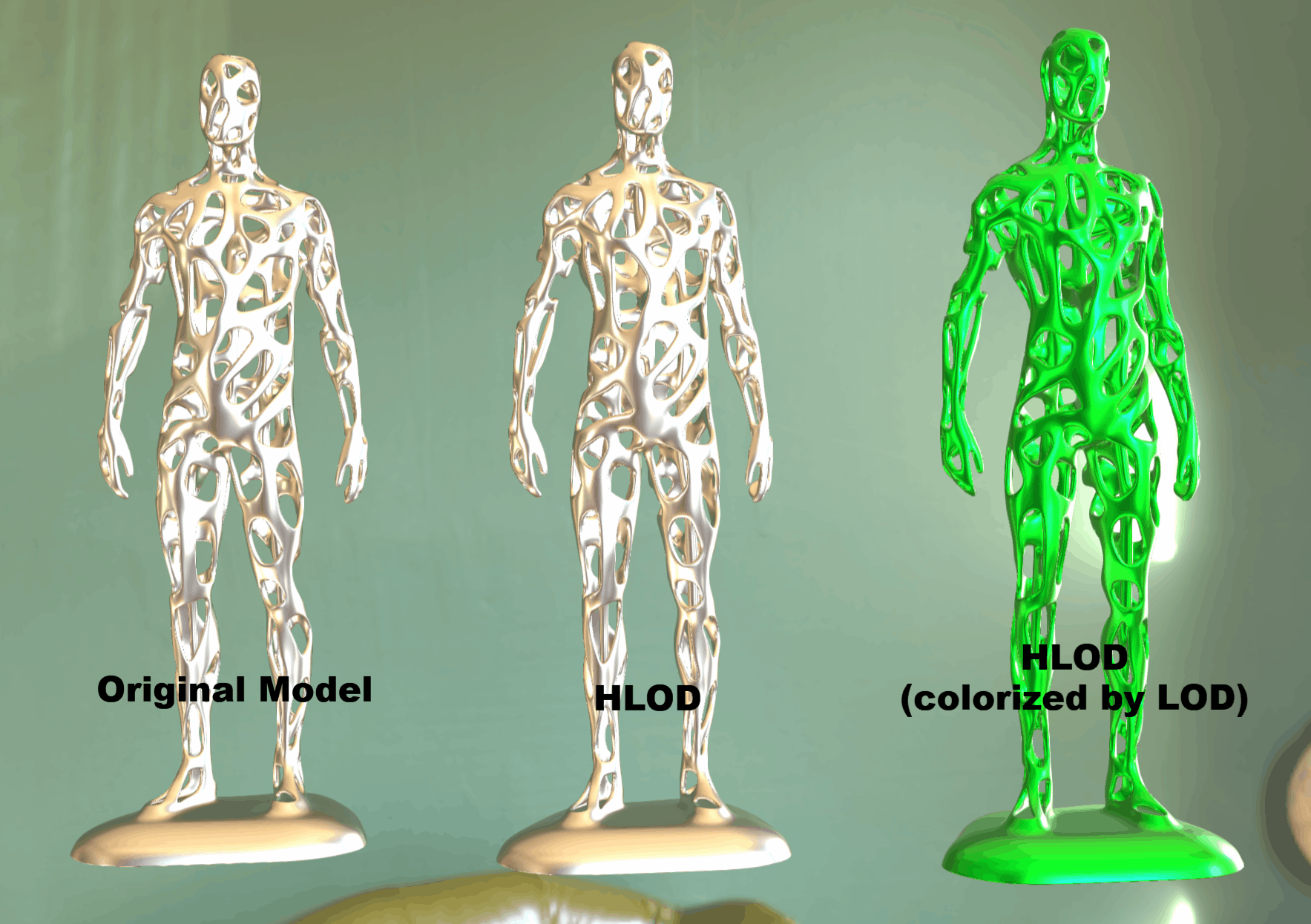

Zooming in HLODs
 See
createHLODChainUsingVisualFootprint.py
for an example usage:
import pxzdef create_hlod_chain(files: list[str], resolution: int = 512, nb_viewpoints: int = 256) -> int:    """Creates a chain of hlods given an list of files to import.    Parameters    ----------    files : list[str]        The files to import. The first in the list is the "original" file. The others are low-quality version of it.        The order of the LODs doesn't matter, they will be ordered in the HLOD chain based on their resemblance        with the original model.    resolution: int        Size of the viewer to compute the footprint.    nb_viewpoints: int        Numbers of points generated around the bounding sphere of the scene to compute the footprints.    Returns    -------    int        The occurrence representing the root of the created hlods chain.    """    print(f"Creating a HLOD chain of {len(files)} files:")    print("   - Importing files... ", end="")    occurrences = []    for filename in files:        occurrences.append(pxz.io.importScene(filename))    print("Done")    print("   - Computing footprints... ", end="")    footprints = [0]    for occ in occurrences[1:]:        # Visual comparison between the first occurrence, which is the real model, and the current lod of the loop        footprints.append(pxz.algo.getVisualComparisonFootprint([occurrences[0]], [occ], resolution, nb_viewpoints))    print("Done")    # Sorting occurrences by footprints    footprints, occurrences = zip(*sorted(zip(footprints, occurrences)))    # Creating HLOD chain    hlods = []    for i in range(len(files)):        hlod = pxz.scene.createOccurrence(f"HLOD {i:03}")        pxz.scene.setParent(occurrences[i], hlod)        cmp_hlod = pxz.scene.addComponent(hlod, pxz.scene.ComponentType.HLODComponent)        pxz.core.setProperty(cmp_hlod, "Error", str(footprints[i]))        hlods.append(hlod)    for i in range(len(files) - 1):        pxz.scene.setParent(hlods[i], hlods[i + 1])    print("Chain creation is done!")    return hlods[-1]files = [    "path_to_original_model.pxz",    "path_to_heavily_decimated_version_of_it.obj",    "path_to_slightly_decimated_version_of_it.glb",    "path_to_more_decimated_version_of_it.fbx",    # ...    "path_to_impostor_version_of_it",]hlod_chain = create_hlod_chain(files)pxz.scene.setParent(hlod_chain, pxz.scene.getRoot())
