Decompose convex meshes
Use this feature to create a new set of convex meshes that approximate the selected mesh.
Read time 1 minuteLast updated 18 hours ago

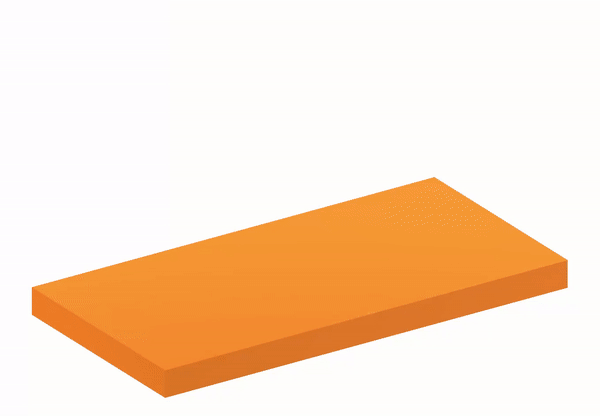

API function: algo.convexDecomposition Use this feature to create a new set of convex meshes that approximate the selected mesh. An example of use is convex mesh colliders. The feature is driven by two parameters:
- The maximum number of convex meshes to be created
- The maximum number of vertices per convex mesh

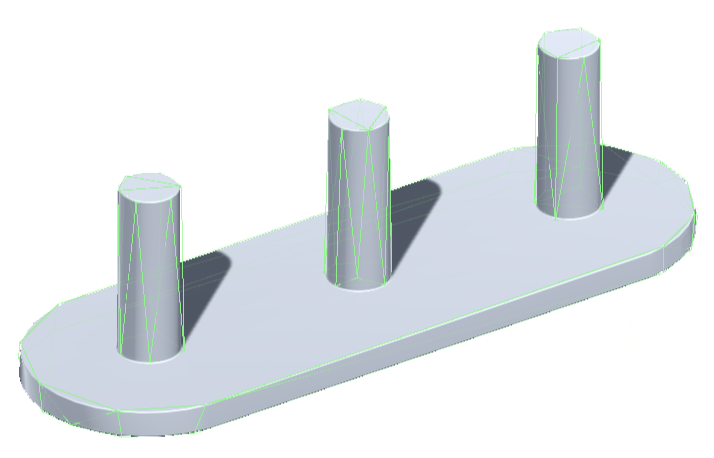

- The base must be decomposed into a set of four convex meshes:

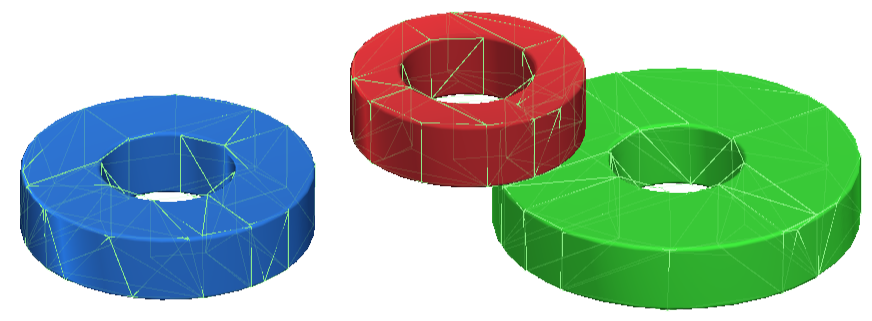

- Each ring must be decomposed into enough convex meshes for the simulation to look realistic:
Tip
A convex decomposition with V vertices and T triangles always satisfies the Euler characteristic:
You can use this formula to show the triangle count to users.
V = 2 + T/2
