Merge Part Occurrences by Regions

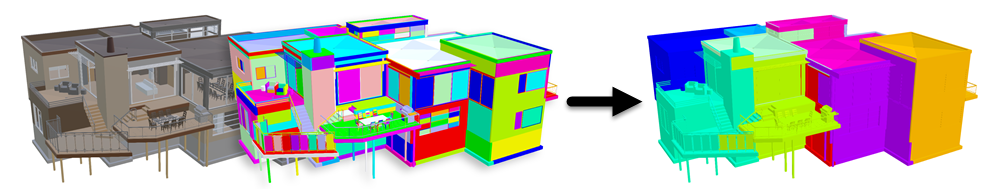

Use this feature to merge part occurrences together based on their physical proximity in the scene, meaning by region.

Read time 1 minute

Last updated 19 hours ago

API functions:

Note

Use scene.getClusters to get part occurrences based on their physical proximity in the scene without merging them.

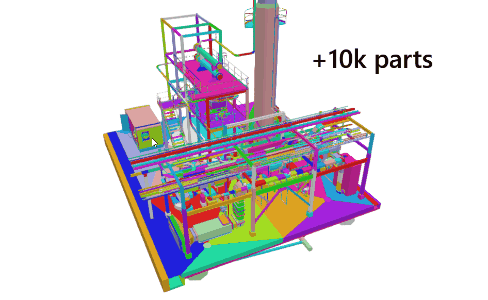

This function fits particularly with large AEC models, coming from Revit, AutoCAD, Navisworks or RVM files.

Indeed, if the model can be merged this function will greatly help with performances:

merging lowers the number of draw calls
by regions lets still benefit from frustrum culling (contrary to other
```
Merge
```
functions that do not merge by location/region but by hierarchy)

This is particularly interesting with large AEC buildings where the model is the environment. If the user is at the center of the building and looking one way, the parts behind him won't be drawn. It would have been drawn if the whole model was merged:

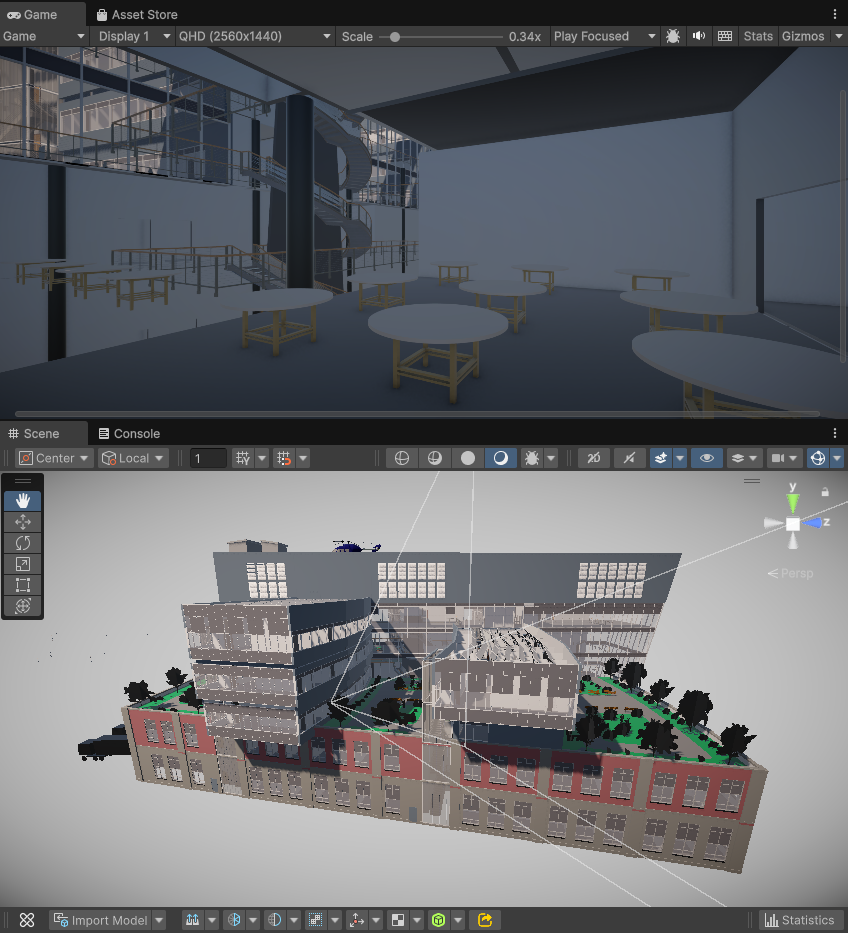

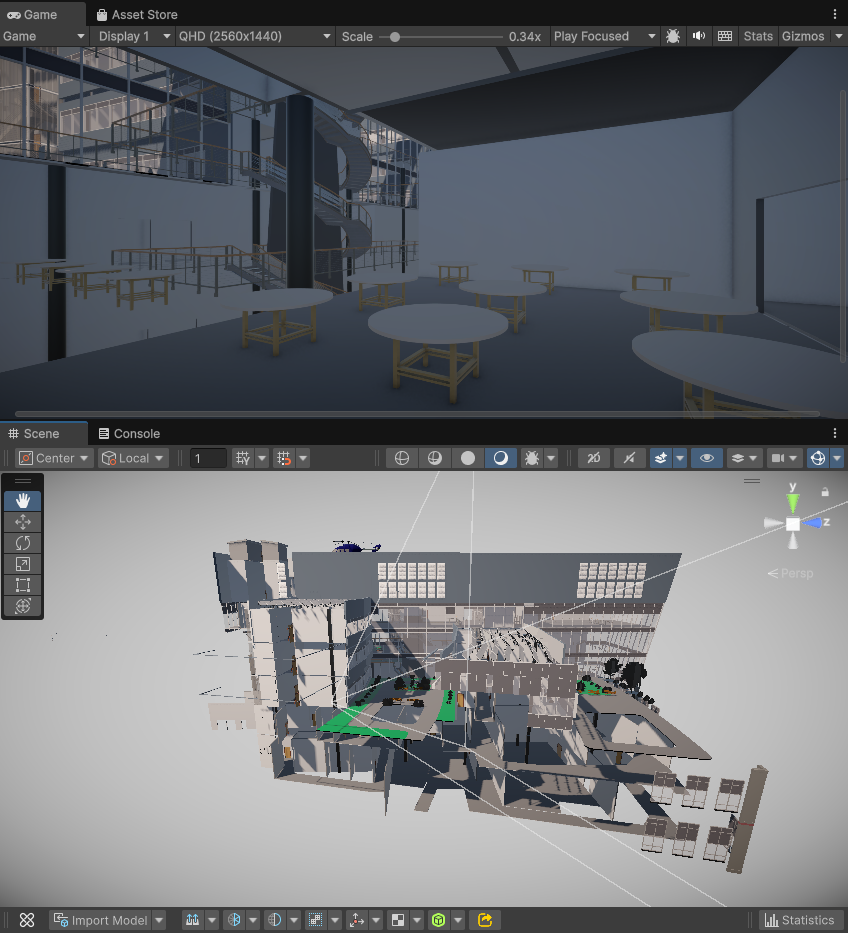

Full Merge	Merge by Regions
