Viewer

Using the Viewer panel in Asset Transformer Studio
Read time 1 minute
Last updated a day ago
Viewer

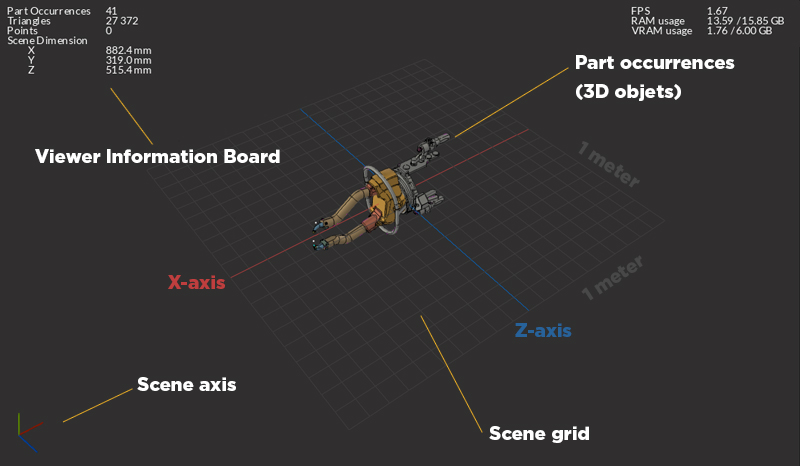

Asset Transformer Studio Viewer panel is where geometries are displayed and can be manipulated (selection, transformation, visibility…):
  • Scene axis: Gives information about the scene orientation. Asset Transformer Studio viewer is Y-up oriented, and right-handed. Red is the X-axis, Green is the Y-axis, Blue is the Z-axis ([X,Y,Z] > [R,G,B]).
  • Part occurrences (3D objects): are displayed accordingly to the viewer settings defined in the Studio Toolbar, Edit menu and the Preferences (F9)
  • Scene grid: brings a visual help to evaluate objects orientation and objects scale. By default, the grid size is 2 meters large.
  • Viewer Information Board: displays information regarding the loaded model: occurrences (parts) and triangles (polygons) count. Use the shortcut F3 to quickly show/hide this board.
Note
Asset Transformer Studio provides a robust & powerful viewer, necessary to display and manipulate numerous complex 3D data, as industrial CAD models are.

Related topics

  • Navigation Controls
  • Selection Controls
  • Preferences
  • Main Toolbar
