Get started

Install and configure the Multiplay Hosting SDK for Unreal Engine.

Read time 3 minutes

Last updated 3 days ago

The following instructions teach you how to install and configure the Multiplay Game Server SDK plug-in. After you’ve installed and configured the Multiplay Game Server SDK for your project, you can use the C++ or Blueprints integration.

Understand the requirements

The Multiplay Game Server SDK plug-in for Unreal Engine supports the Unreal Engine versions 4.27 to 5.3.

Build the Engine from Source

Unreal Engine requires you to use a source build to set up a dedicated server. Refer to Setting Up Dedicated Servers (Unreal Engine). Perform the following steps to build the Unreal Engine from source:

Create an Epic Games account.
Create a GitHub account.
Link your Epic Games account to GitHub account.
Clone the Unreal Engine source code using Git.
Check out a branch corresponding to one of the engine versions specified above (for example, 4.27).
Follow the Getting up and running instructions in the
```
README.md
```
file for the version of the engine that you have checked out.

At this point, you should have an Unreal Engine binary.

Download the Multiplay Hosting SDK

From the Unreal Engine Marketplace website

Sign in to the Unreal Engine Marketplace.
Access the Unity Gaming Services SDK for Unreal Engine Marketplace page.
Unity Gaming Services SDK for Unreal Engine Marketplace page
Select Open in Launcher.
Skip to Step 4 in From the Epic Games Launcher

From the Epic Games Launcher

Sign in to your Epic Games Launcher.
Search for
```
Unity Gaming Services SDK for Unreal Engine
```
in your Epic Games Launcher.

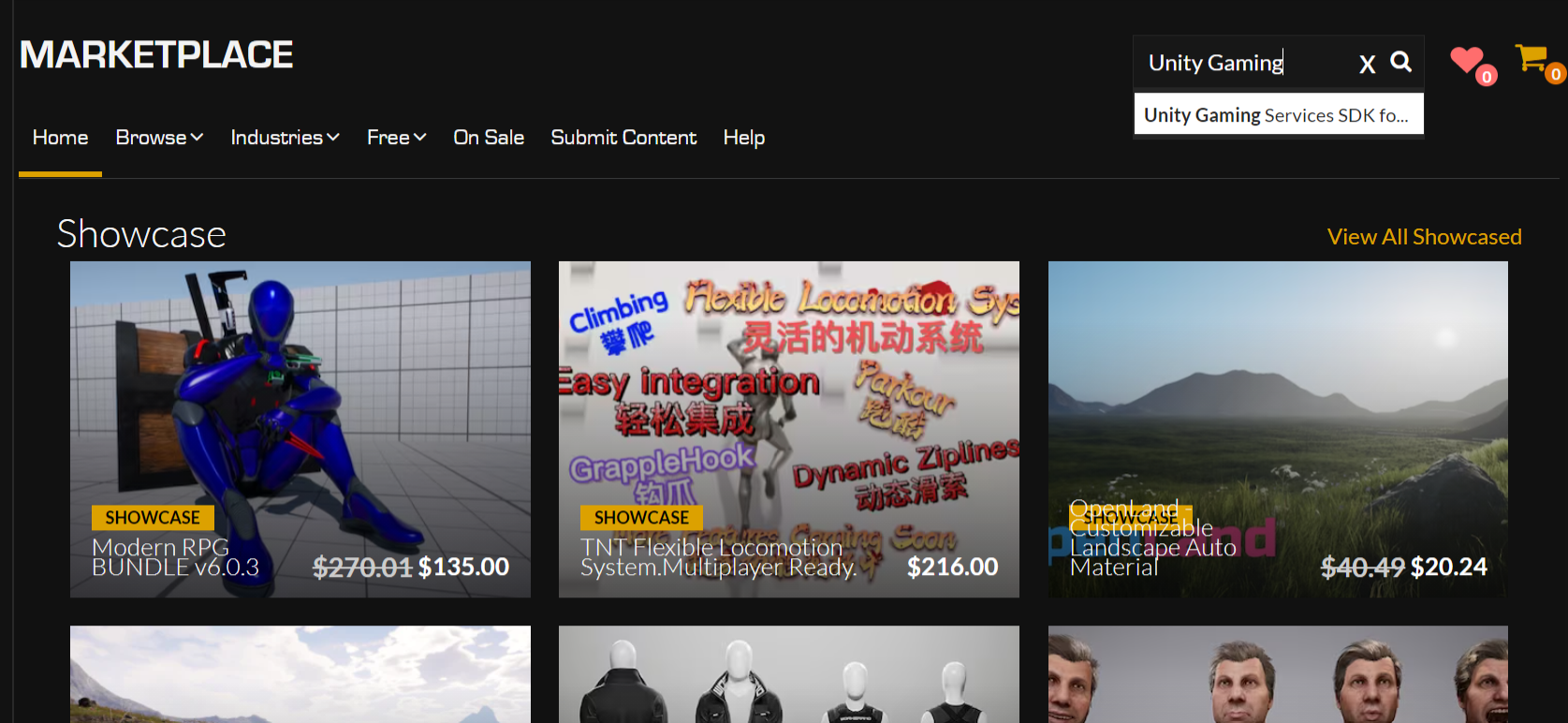

Search for Unity Gaming Services SDK for Unreal Engine
Access the Unity Gaming Services SDK for Unreal Engine page and select Free.

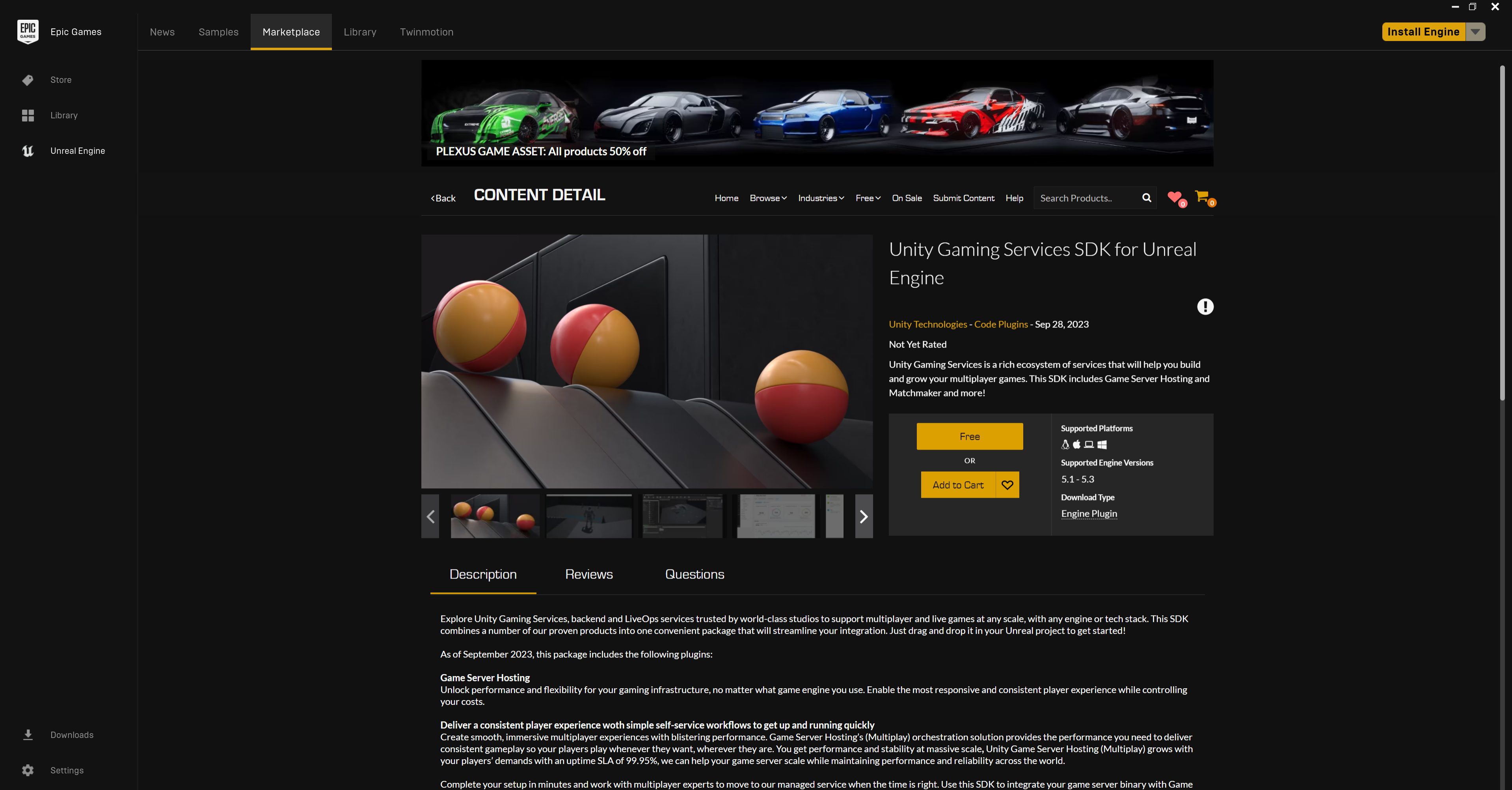

Unity Gaming Services SDK for Unreal Engine Launcher page
Select Install to Engine in your Epic Games Launcher.

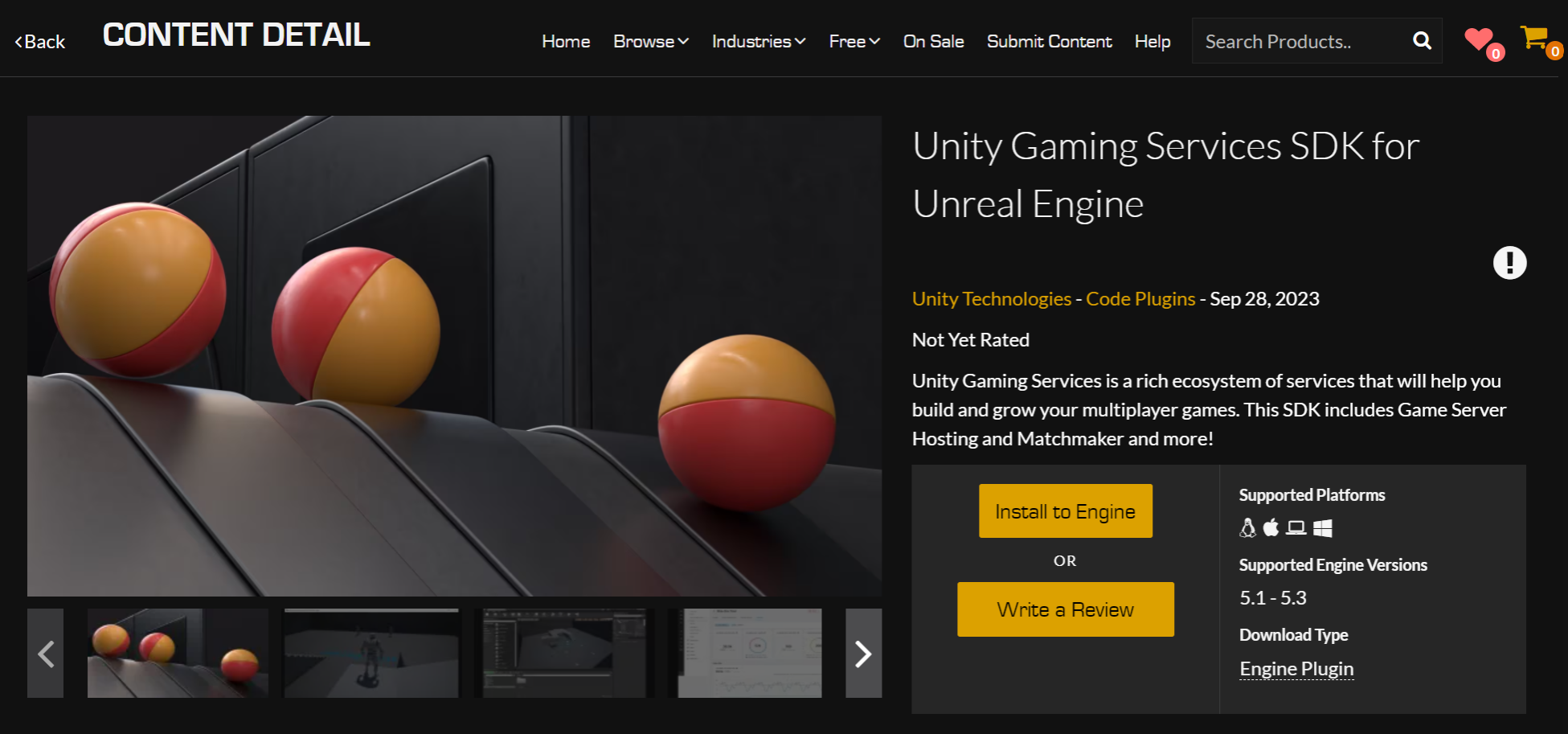

Unity Gaming Services SDK for Unreal Engine install button
Open a new project or an existing one.
Navigate to the
```
Plugins
```
window and check the box next to the Unity Gaming Services SDK for Unreal Engine.

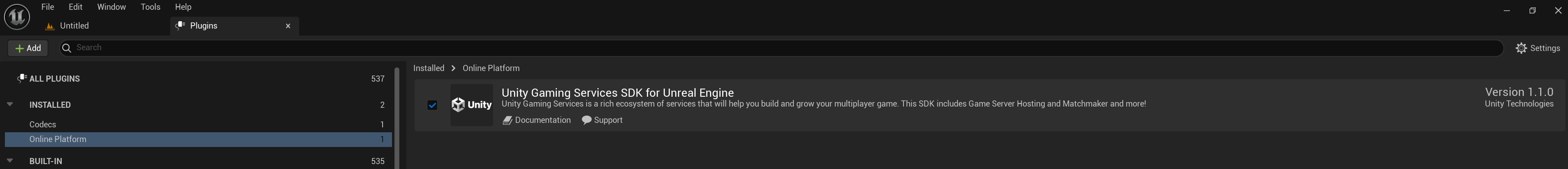

Unity Gaming Services SDK for Unreal Engine plugins window
Restart Unreal Engine
Access your Marketplace folder by doing the following:

If you're using Windows, then default path is:
```
C:\Program Files\Epic Games\UE_5.3\Engine\Plugins\Marketplace
```
. MacOS and Linux also have similar paths.
Copy the
```
UnityGamingServicesSDK
```
folder into your project
```
Plugins
```
folder. If it doesn't exist yet, create it at the root of your project.

Building the project including the SDK

Right-click (macOS: Ctrl+click) the
```
.uproject
```
file, then select Generate Visual Studio project files.
Wait for the generation to finish.
Open the
```
.sln
```
file using Visual Studio.
Add the module as dependency in the
```
.build.cs
```
file (
```
MultiplayGameServerSDK
```
).
Add a new
```
.target.cs
```
file with the server target configuration.

Refer to Building Plugins (Unreal Engine)

Configure the Multiplay Game Server SDK

Multiplay generates the

server.json

file from information about the game server instance, such as the IP address, port number, and server ID. It also includes any configuration variables from the active build configuration. The Multiplay Game Server SDK uses the

server.json

file to access the server query port variable (

$$query_port$$

) and the server ID variable (

$$serverid$$

). To configure the

server.json

file in the Unity Dashboard, access Multiplay Hosting, then select Build Configurations. You must include at least the

queryPort

and the

serverID

in the

server.json

file for your project. Refer to the following example

server.json

file.


{  "queryPort": "$$query_port$$",  "serverID": "$$serverid$$"}

Note

Refer to the

server.json

documentation.

What's next ?

Proceed with either integrations:
