Build configuration workflow
Follow this workflow to create and manage build configurations using the API.
Read time 2 minutesLast updated 3 days ago
Warning
This content is a preview of the documentation. The full documentation, along with code samples, is still in progress. Please provide feedback via the feedback mechanism at the bottom of this page.
- Multiplay API Viewer
- Multiplay API Editor
Note
Throughout this workflow you need to refer to your Unity project ID and environment ID. You can find your project ID on the project settings page, and the environment ID on the environments page.

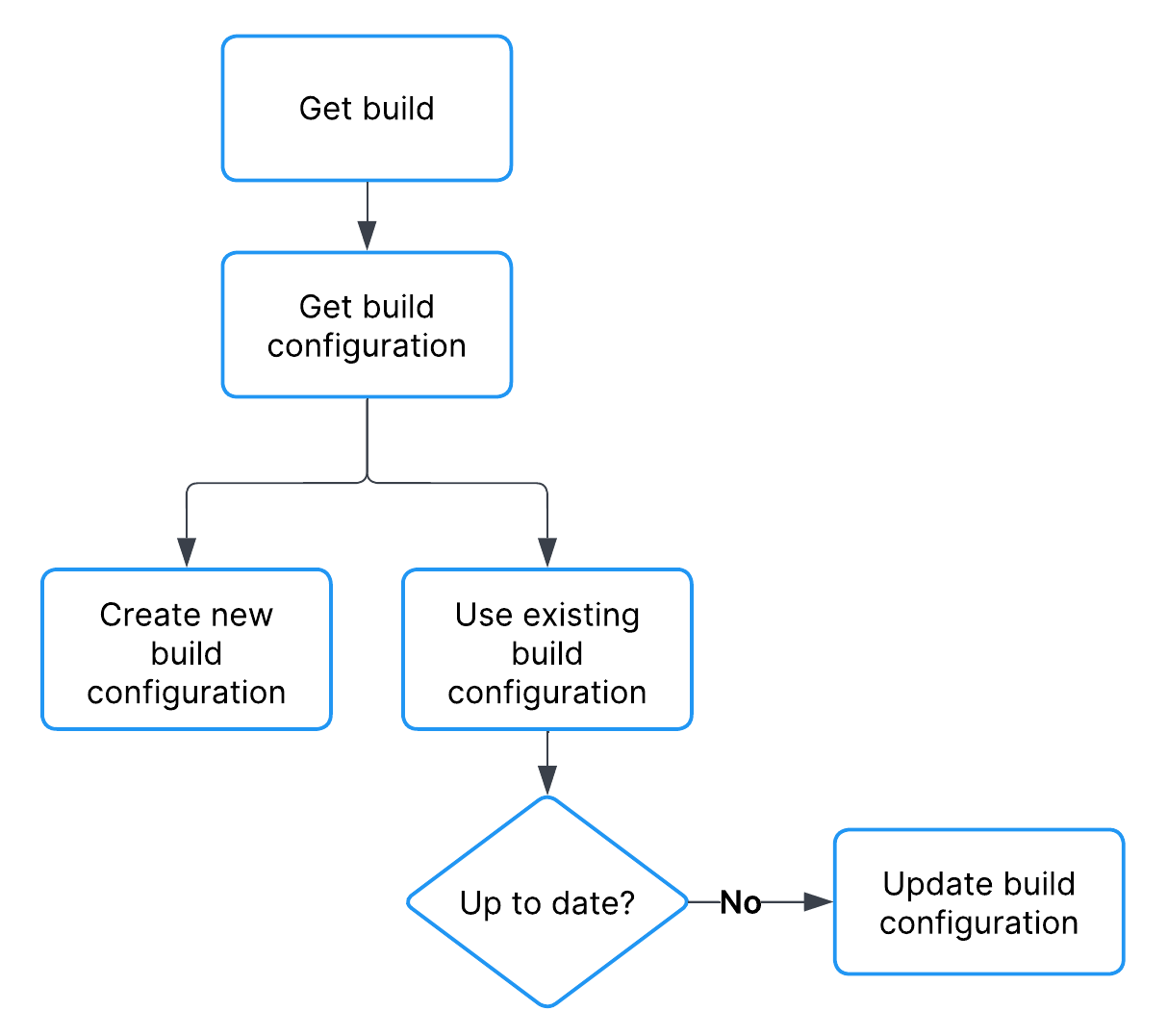

build configuration workflow diagram
Get a build
You can get a build ID by its name using the Get a list of builds API. Refer to Build upload workflow.Note
Make sure to save the build ID. If you already have the build ID, continue to Get a build configuration.
Get a build configuration
The process for getting a build configuration varies depending on whether you want to use an existing build configuration or create a new one. If you opt to use an existing build configuration but want to update it, refer to Update a build configuration.Get an existing build configuration by name
You can get a build configuration ID by its name using the List build configurations API. If you want to update an existing build configuration, refer to Update a build configuration. The following code sample shows how to get an existing build using curl:Refer to the List build configurations API documentation for example response bodies and parameter documentation.curl -X GET -H "Authorization: Basic <SERVICE_ACCOUNT_CREDENTIALS>"https://services.api.unity.com/multiplay/build-configurations/v1/projects/{projectId}/environments/{environmentId}/build-configurations
Create a new build configuration
You can create a build configuration using the Create a build configuration API. The following code sample shows how to get an existing build using curl:Refer to the Create a build configuration API documentation for example response bodies and parameter documentation.curl -X POST -H "Authorization: Basic <SERVICE_ACCOUNT_CREDENTIALS>" -H "Content-Type: application/json" \-d '{"binaryPath": "/path/to/bin", "buildID": <BUILD_ID>, "commandLine": "--init game.init", "configuration": [{}], "cores": 2,"memory": 4000, "name": "Foo name", "queryType": "sqp", "speed": 400}' \https://services.api.unity.com/multiplay/build-configurations/v1/projects/{projectId}/environments/{environmentId}/build-configurations
Update a build configuration
You can update a build configuration using the Update a build configuration API.Note
Only update a build configuration if you’re using an existing build configuration. You shouldn’t need to use the update workflow if you’re creating a new build configuration.
Refer to the Update a build configuration API documentation for example response bodies and parameter documentation.curl -X PUT -H "Authorization: Basic <SERVICE_ACCOUNT_CREDENTIALS>" \-d '{"binaryPath": "/path/to/bin", "buildID": <BUILD_ID>, "commandLine": "--init game.init", "configuration": [{"id": 5, "key": "game_mode", "value": "death_match"}], "cores": 2, "memory": 4000, "name": "Foo name", "queryType": "sqp", "speed": 400}' \https://services.api.unity.com/multiplay/build-configurations/v1/projects/{projectId}/environments/{environmentId}/build-configurations/{buildConfigurationId}
