SetSelectedWireframeHidden(Renderer, bool)

Sets whether the selected Renderer's wireframe will be hidden when the GameObject it is attached to is selected.
Read time 1 minuteLast updated 4 days ago

Definition

  • Type: Method
  • Namespace: UnityEditor
  • Assembly: UnityEditor
Warning
Deprecated. Use EditorUtility.SetSelectedRenderState
public static void SetSelectedWireframeHidden(Renderer renderer, bool enabled)

Parameters

renderer

Renderer

enabled

bool

Remarks

EditorUtilitySetSelectedWireframeHidden (SetSelectedWireframeHidden(Renderer, bool))

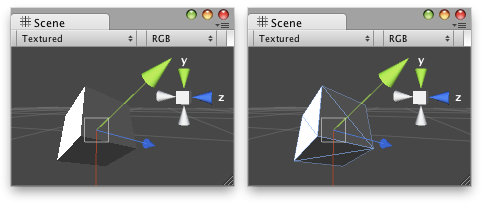

Cube with the wireframe hidden/shown.

Examples

using UnityEngine;using UnityEditor;// Shows / hides the wireframe of the objects in the Scene.class ShowHideWireFrame : Editor{    [MenuItem("Examples/Show WireFrame %s")]    static void Show()    {        foreach (GameObject obj in Selection.gameObjects)        {            Renderer rend = obj.GetComponent<Renderer>();            if (rend)            {                EditorUtility.SetSelectedWireframeHidden(rend, false);            }        }    }    [MenuItem("Examples/Show WireFrame %s", true)]    static bool CheckShow()    {        return Selection.activeGameObject != null;    }    [MenuItem("Examples/Hide WireFrame %h")]    static void Hide()    {        foreach (GameObject obj in Selection.gameObjects)        {            var rend = obj.GetComponent<Renderer>();            if (rend)            {                EditorUtility.SetSelectedWireframeHidden(rend, true);            }        }    }    [MenuItem("Examples/Hide WireFrame %h", true)]    static bool CheckHide()    {        return Selection.activeGameObject != null;    }}
