Getting Started With Scripting

Learn how to use the Python API in Asset Transformer Studio

Read time 6 minutes

Last updated 10 hours ago

Learn how to use the Python API to automate tasks in Asset Transformer Studio.

Whether you want to script short helper functions or plugins, this document should help you get started or improve your knowledge.

Tools

In this document, we use the Script panel as scripting tool, but feel free to use your preferred IDE.

Note

When using your preferred IDE for development you will suffer from lack of autocompletion. Have a look at our custom workaround to generate static autocompletion libraries for Visual Code, Sublime or PyCharm.

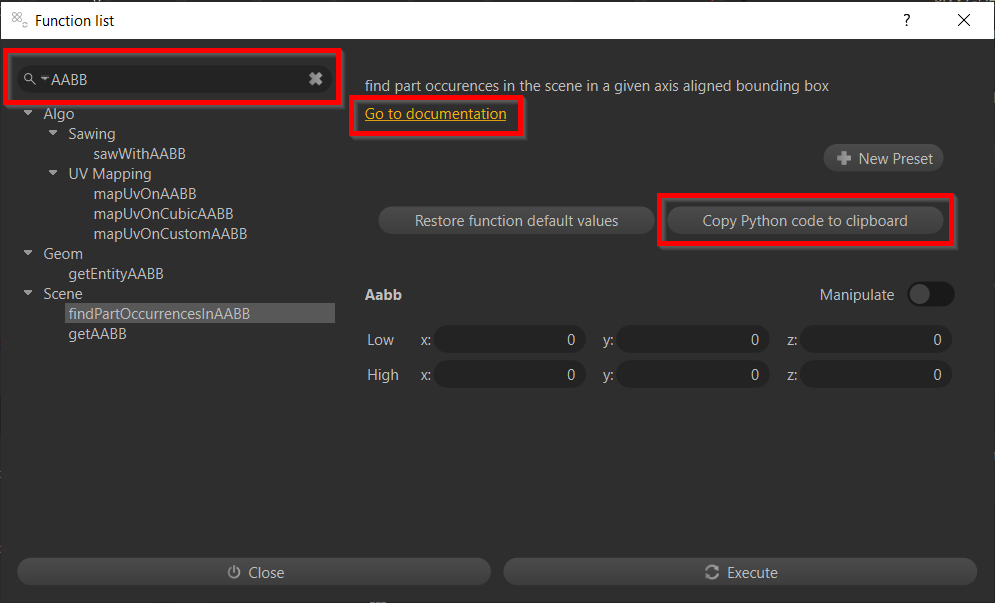

All API functions are listed in the API Reference, but also directly in Asset Transformer Studio Function List. This tool is particularly useful to find methods from keywords, go to their documentation and access parameters and returned types, but also to copy and paste Python code:

Structure

Consider that anything doable via a human interaction in Asset Transformer Studio is doable through the API.

To understand the logic of Asset Transformer Studio scripting you must understand the structure behind it:

Asset Transformer Studio entity structure (simplified)

Entities

Entities are abstract objects defined by an integer ID (meaning that an occurrence, a material or a component will all have an ID). Each ID is unique and most functions take this ID or a list of IDs as input. Some functions such as

core.getProperty

core.setProperty

, or

core.listProperties

take all types of entities as input — meaning that you'll use the same function to access an occurrence, a material or a part property:

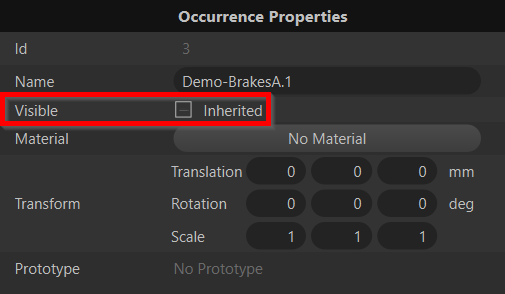

core.getProperty(3, 'Visible') → 'Inherited'

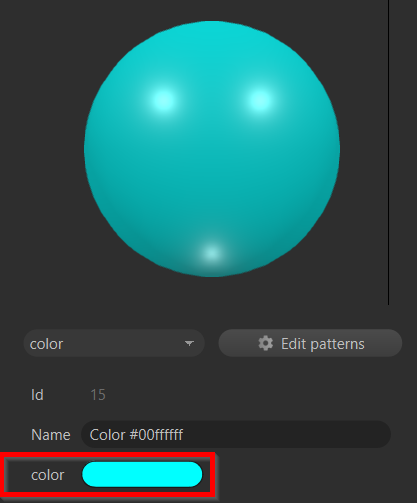

core.getProperty(15, 'color') → '[0, 1, 1, 1]'

Note

Use

eval(…)

to convert the returned string value of

getProperty

into a list (e.g. for the

color

property) or a list of lists (e.g. for the

Transform

property).

Occurrences

Occurrences are the nodes in the product structure, they can have children and prototypes. Most of the optimization functions take an occurrence or a list of occurrences as input. For example:

```
algo.tessellate([1], …)
```
will apply on all children of
```
1
```
.
To retrieve the root occurrence in your scene you can use the
```
scene.getRoot()
```
function.
To find occurrences based on a property you can use the
```
scene.findOccurrencesByProperty(property, regex)
```
function.

Properties defining occurrences can be visualized in the Inspector (ID, Name, Visible, Material, Transform…).

Note

A useful way to retrieve all occurrences in your scene, or recursive children of an occurrence is to use the

findOccurrencesByProperty

method with the

Name

property and

.*

as a regex:

scene.findOccurrencesByProperty('Name', '.*', [scene.getRoot()])

. ⇒ Find all the Occurrences, with the Property Name= anything, among the Occurrences that compose the Root of the scene (= all the occurrences).

Note

To only retrieve part occurrences (occurrences containing a part component) use

scene.getPartOccurrences(root)

Components

Components are behaviors attached to occurrences. Their IDs can be retrieved thanks to the

scene.getComponent(occurrence, componentType)

or the

scene.getComponentByOccurrence(listOfOccurrences, componentType)

methods (value is 0 if does not exist for the second method). Component types are listed in the

scene.ComponentType

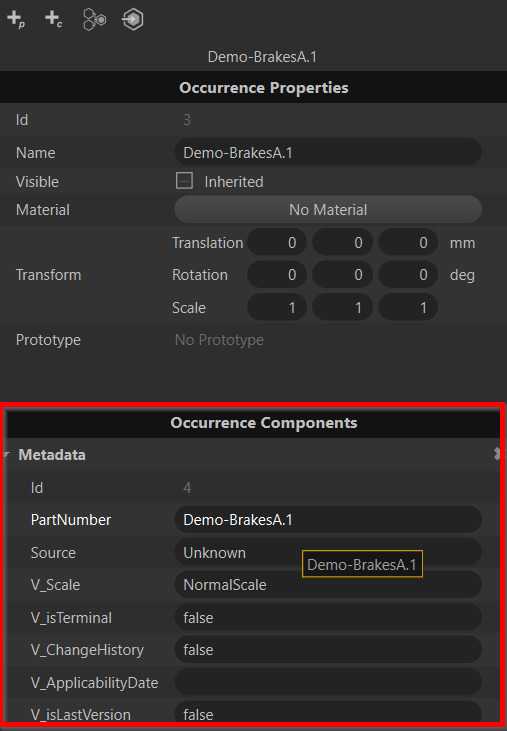

enum. You can visualize the components in the Inspector below the occurrence properties:

Metadata

Metadata are components storing basic key/value information retrieved in the imported files. You can add, modify, and delete metadata through the API. You can either use

core.listProperties

core.getProperty

to access this information or directly extract it using

scene.getMetadatasDefinitions(listOfMetadataComponents)

. You can also use

scene.findByMetadata(property, regex)

to retrieve occurrences based on metadata.


occurrences = scene.findByProperty('Name', '.*')
metadataComponents = scene.getComponentByOccurrence(occurrences, scene.ComponentType.Metadata)
metadataDefinitions = scene.getMetadatasDefinitions(metadataComponents)

for occurrence, definition in zip(occurrences, metadataDefinitions):
    print(f'Occurrence {occurrence} contains {len(definition)} metadata')
    for propValue in definition:
        print(f'{propValue.name}:{propValue.value}')

Part

Part components contain geometry information (CAD, mesh, lines, UVs…). For example, to retrieve mesh definitions from a list of occurrences:


partComponents = scene.getComponentByOccurrence(occurrences, scene.ComponentType.Part)
for occurrence, partComponent in zip(occurrences, partComponents):
    if partComponent != 0: # meaning the corresponding occurrence did not have any part attached
        mesh = scene.getPartMesh(partComponent)
        meshDef = polygonal.getMeshDefinition(mesh)
        vertices = meshDef.vertices # MeshDefinition is a structure, its attributes can be found in the API documentation

Materials

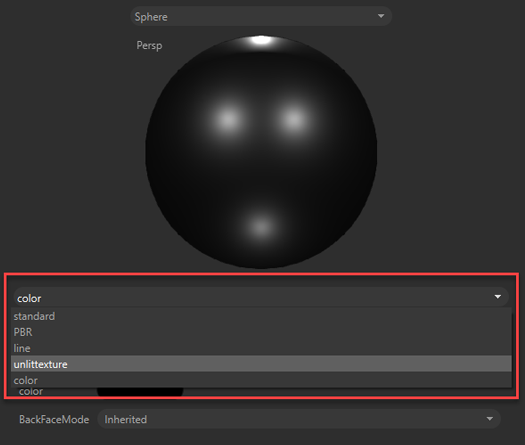

Materials are entities containing visual definitions. They can be interactively accessed from the Material Editor. They are defined by a pattern and properties specific to each pattern.

When creating a material from script, a pattern is required: fill it with one of the above ones depending on which type of material you want to create (

material.createMaterial("Standard Material", "standard")

When modifying from script a material defined by complex properties, it can be hard to understand how to fill the value parameters of

core.getProperty

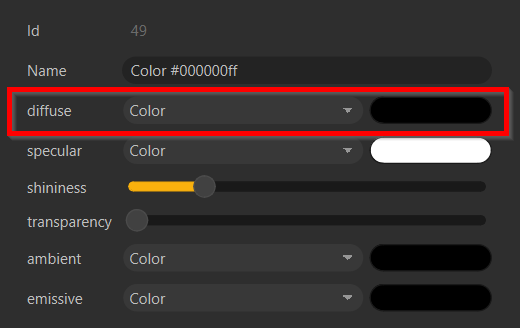

. For example the diffuse value of a standard material:

In this case you can print in the console the diffuse value of an existing material by just executing:

print(core.getProperty(49, 'diffuse'))

, which will output

COLOR([0.000000, 0.000000, 0.000000])

. So to modify a diffuse texture proceed as follows:

core.setProperty(materialId, 'COLOR(' + str(YOUR_VALUES) + ')')

For example, here is a script to assign materials based on a metadata:


def assignMaterialsFromMetadata():
    existingMaterials = {core.getProperty(mat, 'Name'):mat for mat in material.getAllMaterials()}
    filteredOccurrences = scene.findOccurrencesByMetadata('CAD_MATERIAL', '.*')
    filteredMetadata = scene.getComponentByOccurrence(filteredOccurrences, 5, True)
    for occurrence, metadata in zip(filteredOccurrences, filteredMetadata):
        materialName = scene.getMetadata(metadata, 'CAD_MATERIAL')
        if materialName in existingMaterials.keys():
            core.setProperty(occurrence, 'Material', str(existingMaterials[materialName]))
        else:
            newMaterial = material.createMaterial(materialName, 'color')
            core.setProperty(newMaterial, 'color', str([0.5, 0.5, 0.5, 1]))
            core.setProperty(occurrence, 'Material', str(newMaterial))
            existingMaterials[materialName] = newMaterial

assignMaterialsFromMetadata()

Tips

Sample scripts are accessible in the Asset Transformer Studio installation folder (
```
doc/Sample Scripts
```
).
To search the Python API documentation offline, use the pixyz-api-search tool. This tool supports partial matches.
When parsing a large number of occurrences, thousands of logs will be written in the console. It can slow down your process or even freeze Asset Transformer Studio. You can disable the logs by using the
```
core.configureInterfaceLogger
```
function. Don't forget to re-enable them at the end.

Generate your own progression steps by using the

core.pushProgression

and

core.stepProgression

methods:


allPartOccurrences = scene.getPartOccurrences()
core.pushProgression(len(allPartOccurrences))
for occurrence in allPartOccurrences:
    # ...
    core.stepProgression()
core.popProgression()

When retrieving a structure from a method (e.g.
```
scene.getAABB(occurrences)
```
), you can check the documentation to get the attributes names (e.g. AABB.low and AABB.high):
```
aabb = scene.getAABB([scene.getRoot()])
print(f'Higher x values: {aabb.high.x}')
```
To import custom modules: Import custom Python modules in Studio
Most preferences are shared between Asset Transformer products. To change them from script, use the
```
core.setModuleProperty
```
method:
```
core.setModuleProperty('IO', 'PreferLoadMesh', 'True')
```
