Basic Structures in a Scene

Core object types and scene structures used in Asset Transformer Studio Python scripting
Read time 2 minutes
Last updated a day ago
To get started, check also the following topics about concepts and vocabulary:
  • About the Product Structure (Tree)
  • Glossary

Object types

  • All objects are called
    entities
  • In Python scripting, an entity is defined by a unique numerical identifier, or
    ID
  • The API Reference shows inheritance of entity types.
For example, a part is inherited from component, so if a function wants a
component
parameter you can give it a
part
:

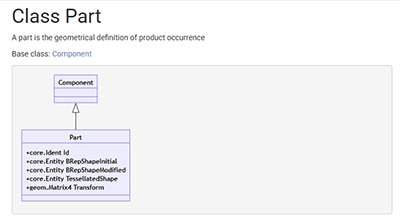

Entity type inheritance

Scene occurrences

  • Product Structure / Scene nodes are Occurrences
  • An occurrence can have child occurrences
  • An occurrence has Properties:
    • Name
    • Transform
    • Material
    • Visible
  • An occurrence owns components (maximum one of each type)

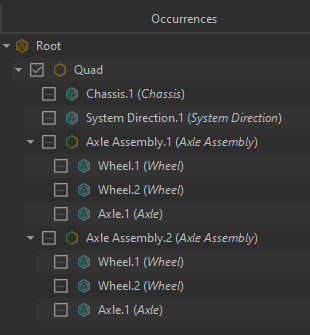

Occurrence structure

Scene components

List of component types:
  • Part
  • PMI
  • Light
  • Metadata
  • Variant
  • Animation
  • Joint
  • SubPart Material

Prototyping

  • Each occurrence can have a prototype, a prototype is also an occurrence
  • A prototype is a kind of pattern
  • An occurrence can override properties of its prototype occurrence

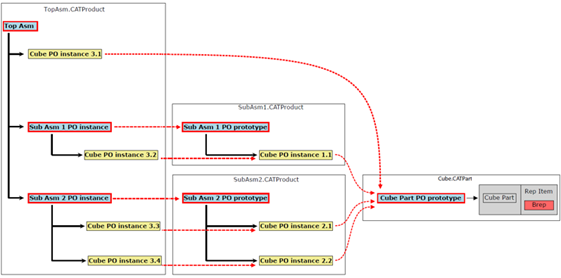

Prototype example
See also: About Instances & Prototypes

Scene Part

  • A part contains geometry, contained in a shape
  • A part may contain one or two shapes:
    • A
      BRep Shape
      with CAD representation
    • A
      Tessellated Shape
      with Mesh representation
  • The active shape is the tessellated shape if it exists, the BRep shape otherwise.
  • A part has a local transformation matrix

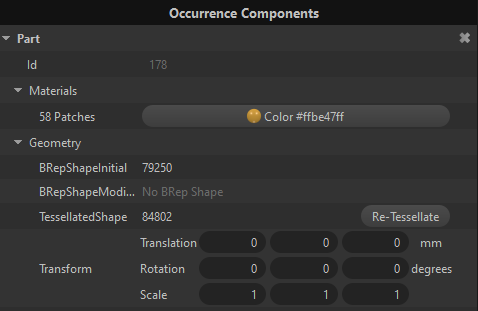

Part structure

Common functions for scene handling

Get the type of an entity as a String:
core.getEntityTypeString(entity)
Get/Set a property value (all property values are Strings):
nameValue = core.getProperty(entity, "Name")
core.setProperty(entity, "Name", "NameValue")
List available properties on an entity:
core.listProperties(entity)

Other Python examples

Occurrence list with the root:
[scene.getRoot()]
Occurrence list with all parts:
scene.getPartOccurrences()
Occurrence list with selection:
scene.getSelectedOccurrences()
All occurrences:
scene.findOccurrencesByProperty('Name', '.*')

Related Topics

  • Product Structure Management
  • Scripting With the Python API
