Occurrence Properties

The properties of occurrences in Asset Transformer Studio

Read time 1 minute

Last updated 12 hours ago

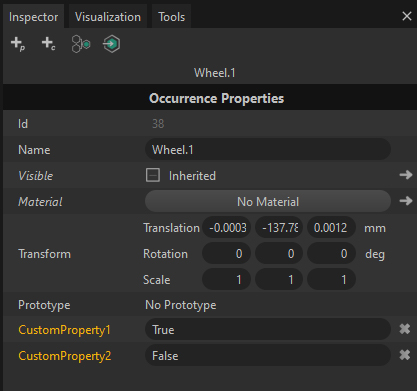

An occurrence carries properties, which can be viewed and used through the Inspector panel, or using Python scripting.

There are 3 types of properties:

Default properties

An occurrence has 6 default properties:

```
Id
```
: Is a unique numerical identifier that identifies each occurrence of a scene
```
Name
```
: Defines the name of the occurrence, as it is displayed in the Product Structure panel, and at the top of the Inspector panel when selected
```
Visible
```
: Defines the visibility of the occurrence in the scene
```
Material
```
: Defines the material assigned to the occurrence
```
Transform
```
: Defines the position of the occurrence in the scene (transformation matrix)
```
Prototype
```
: Defines if the occurrence is an instance from another occurrence (which is its prototype: see About Instances & Prototypes)

A CAD/3D model can contain occurrences in its Product Structure that carry additional, non-geometric data, often called metadata in the CAD world.

These metadata were added to the CAD model directly in the software where it was created, and are retrieved at import in Asset Transformer Studio.

They are stored as properties in the Metadata Component, which is automatically created at import.

Custom properties

can be added to an occurrence by the user through the user interface (Inspector panel) or using Python scripting.

Note

Custom Properties are listed in the

Other Properties

folder of the Inspector panel.
