Occurrence Components

The components that can be attached to occurrences in Asset Transformer Studio

Read time 2 minutes

Last updated 9 hours ago

An occurrence can receive

components

to modulate its behavior (just like in Unity).

An occurrence is by default an empty node that does not contain any geometry. It does not accomplish much by itself, but it acts as a container for

components

, which implement the real functionality.

Accessing components

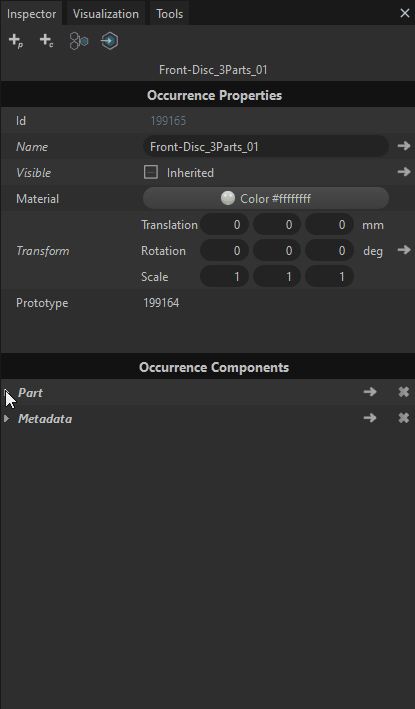

The components of the selected occurrence can be visualized in the Inspector panel, in a dedicated widget called

Occurrence Components

(below the

Occurrence Properties

widget).

This widget lists one foldable row per component (

Part

row,

Light

row, etc.).

Note

Components can be manipulated through the scripting API using functions like

getComponent

hasComponent

listComponents

… More information here.

There are multiple component types, and an occurrence can own a maximum of one of each component type.

Component type	Description
Part	A Part component contains geometry information (CAD, mesh, lines, UVs…). To retrieve mesh definitions from a list of occurrences using the Python API, see here.
PMI	An occurrence can have a `PMI` component, allowing to display PMI information. PMI can be displayed from the Variants panel, where all scene PMI and views are listed. See also Variants and PMI.
Light	An occurrence with a Light component stores a light object, which can be used to modify the lighting of the scene. Available light objects are: `Directional light` , `Point light` and `Spot light` .
Metadata	An occurrence can have a Metadata component that stores Metadata information, which is a list of basic key/value pairs, called metadata properties, retrieved when importing a file. You can add/modify/delete metadata through the API: see here.
Variant	An occurrence can have a Variant component, which links the occurrence to the variants that use this occurrence. See also Variants and PMI.
Animation	An occurrence can have an Animation component, which stores the position information in time of this occurrence for a given animation clip. See also About Animation.
Joint	An occurrence can have a Joint component, which links animation attributes stored in a mesh with a Joint from a skeleton. See also About Animation.
