Asset Transformer Studio

Customizing the Product Structure

How to customize the Product Structure display in Asset Transformer Studio
Read time 1 minuteLast updated 23 days ago
Customizing the Product Structure
By default, the Product Structure displays the name of the occurrences and their visibility.
In order to gain efficiency while reviewing the scene, the user can display further information regarding the occurrences listed in the tree through Fast Properties.

About Fast Properties

Each occurrence carries properties (see About Occurrences and Occurrence Properties for more information).
Each property (among
ID
,
Name
,
Visible
,
Material
,
Transform
,
Prototype
, or
Custom Property

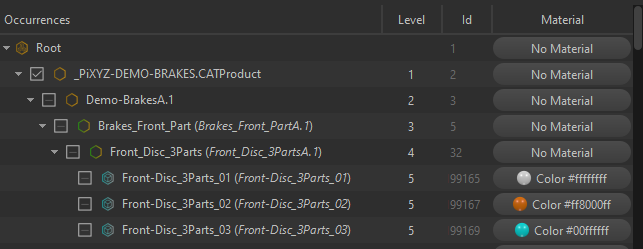

) can be made visible in the Product Structure, by making it a Fast Property, added as a column.
The column displays the property's value for each occurrence of the tree.
Important
Displaying a lot of Fast Properties for scenes with a very large number of occurrences may impact the fluidity of navigation in the scene.

Displaying a Fast Property

Add Fast Property
To display an occurrence property as a Fast Property:
  1. Select an occurrence.
  2. Go to the Inspector panel.

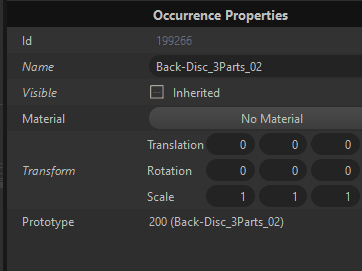

  3. In the
    Occurrence Properties
    folder, at the line of the property you wish to display as a fast property, right-click the property and click Add fast property "PropertyName".
Or:
  1. Right-click an occurrence from the Product Structure.
  2. Go to Add Fast Properties and click the desired property.

Removing a Fast Property

Remove Fast Property
To remove a Fast Property:

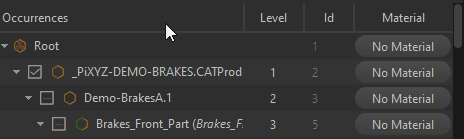

  1. Right-click the top bar of the Product Structure panel, named Occurrences.
  2. Remove the desired Fast Property by clicking the dedicated line in the contextual menu.
