Exporting Textures

How to export textures from Asset Transformer Studio

Read time 2 minutes

Last updated 9 hours ago

In Asset Transformer Studio, it is possible to define if textures should be exported as PNG or JPEG files, with a parameterization of image quality for JPEG, and image compression for PNG.

Data preparation is not only about mesh optimization. Texture maps (whether imported in Asset Transformer Studio or generated through a baking process) can also be optimized to be lighter, while having control over their quality.

Almost all export formats handled by Asset Transformer Studio support the export of textures, whether they are embedded or as separate files: FBX, glTF, OBJ, USDZ, etc.

Note

Depending on the export format, not all texture types may be included — some formats support only certain map types, and some support no textures at all. Examples of types that may be excluded: Normal maps, Opacity maps, NPOT maps…

Embedded vs Not embedded textures

When exporting a 3D model that uses textures, depending on the format used to export, textures can be embedded within the file, or saved separately:

Embedded: .fbx, .glb, .usdz, .jt, .3dxml
Separate files: FBX, .gltf, .obj, .usda, .usdc, .vrml

The FBX format has an export parameter

Fbx Embedded Textures

to define whether textures should be exported as embedded within the FBX file (default), or separately.

Go to Preferences (F9) >

IO

Export

FBX

How To

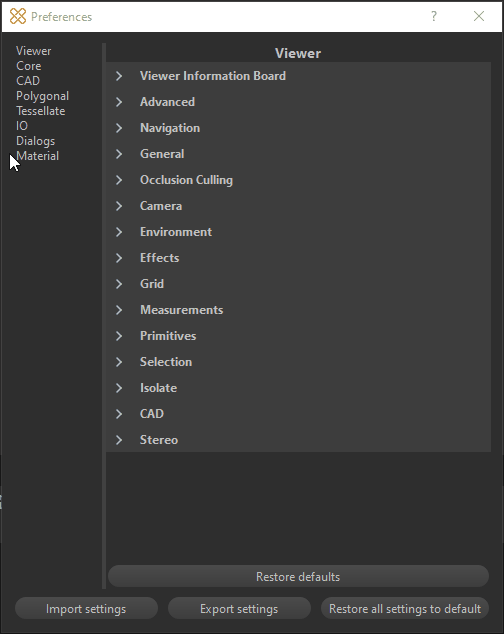

To define how textures are exported from Asset Transformer Studio, select Preferences (F9) >

Material

Texture export

Fine-tune the exposed parameters to your liking:

Export Texture Format parameter

Choose between PNG (default) and JPEG as the default texture export format for Asset Transformer Studio.

Important

When saving a file from the Texture Editor, the extension can be chosen from the Export texture dialog box (overriding Asset Transformer Studio's general preference).
When exporting a file in script, using the function material.exportImage(), the extension can be chosen in the Filename path.

With the 2 methods, the Quality and Compression used are the ones defined in the Preferences.

JPEG Quality parameter

Defines the Quality of the textures saved as JPEG files. Choose between 0 and 100 (the higher is the better), 95 being the default value.

PNG Compression parameter

Defines the level of compression for textures saved as PNG files, from 0 to 9. A higher value means a smaller size and longer compression time.

Note

The JPEG format is lossy by definition, even if the quality level is set to 100. With the PNG format, even with the highest compression level the image is saved/loaded lossless. However, the saving/loading time increases with higher compression. The compression level is a trade-off between file size and encoding/decoding speed.

Scripting

These parameters can be set in a script using the following commands:


core.setModuleProperty("Material", "ExportTextureFormat", "JPEG")core.setModuleProperty("Material", "JpegQuality", "[95, 0, 100]")core.setModuleProperty("Material", "PngCompression", "[1, 0, 9]")
