Plugin for Bamboo#

How to install the UVCS plugin for Bamboo#

1. Copy the Plastic SCM JAR file <UVCS install directory>/client/plugins/bambooplugin/<bamboo-plugin.jar> to <Bamboo server installation directory>/atlassian-bamboo/WEB-INF/lib.
2. Restart the Bamboo service.

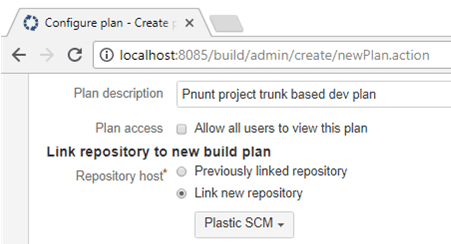

3. UVCS (Plastic SCM) is available now in the Source Repository combo:

Plastic SCM configuration and Bamboo service account#

The Bamboo plugin internally uses the UVCS command line client. So, the user running the Bamboo service must have a valid Plastic SCM client configuration. There are two options:

Option A#

Change the user account:

1. Change the user that runs the service from "System" to another user account (Windows).
2. Then, open a command line shell with the desired user account and type plastic --configure or clconfigureclient.
3. Follow the steps in the wizard to specify a server and user credentials.

Option B#

If you don't want to change the user running the Bamboo service, an alternative configuration is:

1. Create empty client.conf and plastic.workspaces files in the UVCS client installation directory located here:
   • Windows: c:\Program Files\Plastic SCM5\client
   • Linux: /opt/plasticscm5/client
   • MacOS: /Applications/PlasticSCM.app/Contents/MonoBundle
2. Configure the client by running plastic --configure or clconfigureclient.
3. Follow the steps in the wizard to specify a server and user credentials.

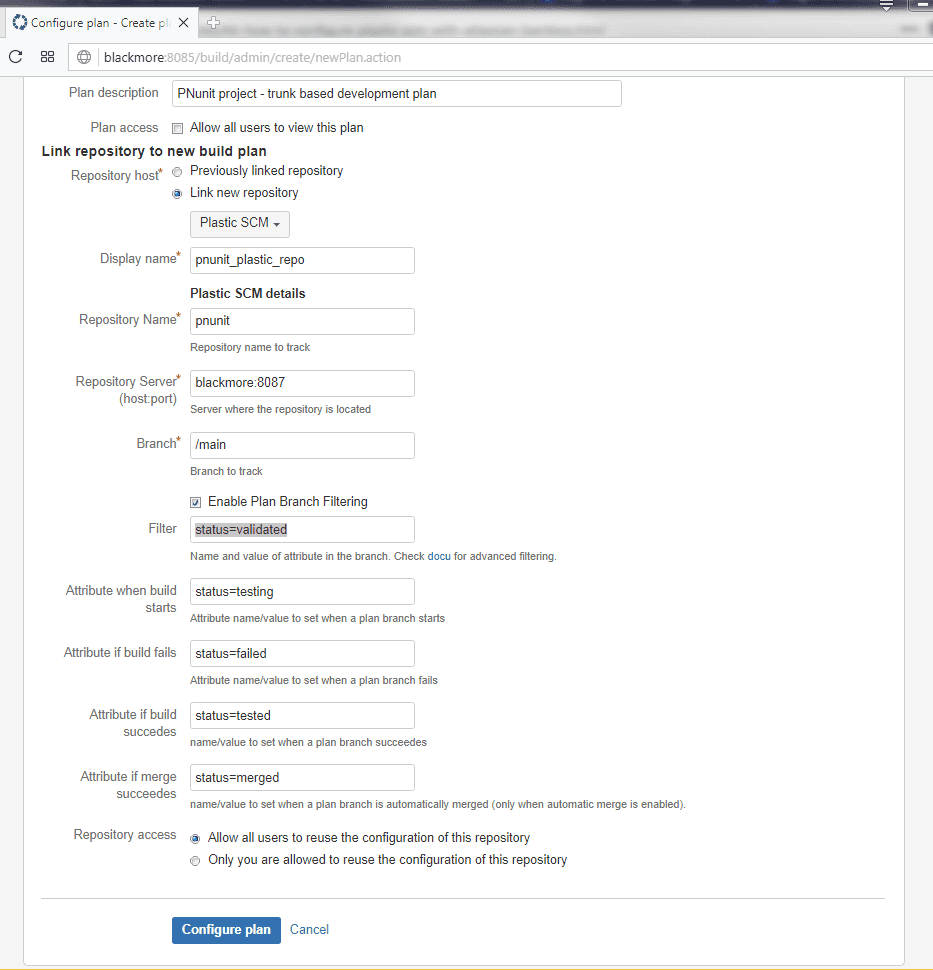

 Plan branch filtering#

Branches can be filtered in two ways:

1. Specifying an attribute name and value pair as follows: attribute_name=attribute_value. For example: status=validated which means that only the branches with an attribute named status with the value validated will be sent to Bamboo to create a plan branch.

2. Specifying a complex query valid for cm find branch command (which is the underlying plastic command executed to retrieve the candidate branches). It is not mandatory to specify a plastic attribute in this mode. Two examples below:

where owner!='john_snow' and date > '3/2/2018'
where attribute='stage' and attrvalue='done' and name like 'JIRA-%'
