position

The desired position of the window in screen space.
Read time 1 minuteLast updated 4 days ago

Definition

  • Type: Property
  • Namespace: UnityEditor
  • Assembly: UnityEditor
public Rect position { get; set; }

Remarks

Setting this value will undock the window if it is docked.
EditorWindowPosition (position)
Create an undocked editor window with position.

Examples

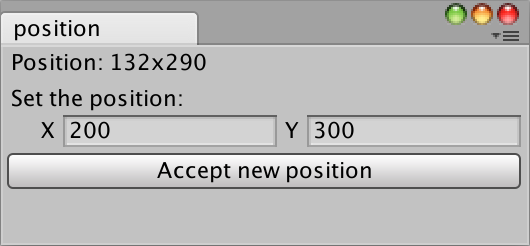

// The position of the window is displayed when it is// external from Unity.using UnityEngine;using UnityEditor;using UnityEngine.UIElements;public class PositionExample : EditorWindow{    Vector2Int p1;    bool showButton = true;    [MenuItem("Examples/Window Position")]    static void Init()    {        GetWindow<PositionExample>("position");    }    void CreateGUI()    {        Rect r = position;        var label = new Label("Position: " + r.x + "x" + r.y);        rootVisualElement.Add(label);        var field = new Vector2IntField("Set the position:");        rootVisualElement.Add(field);        if (showButton)        {            var button = new Button(() => {                r.x = field.value.x;                r.y = field.value.y;                position = r;            });            button.text = "Accept new position";            rootVisualElement.Add(button);        }    }}
