Blueprint Integration

Learn how to implement authentication using Unreal Engine Blueprints.

Read time 6 minutes

Last updated 6 months ago

Add the Authentication SDK as a dependency

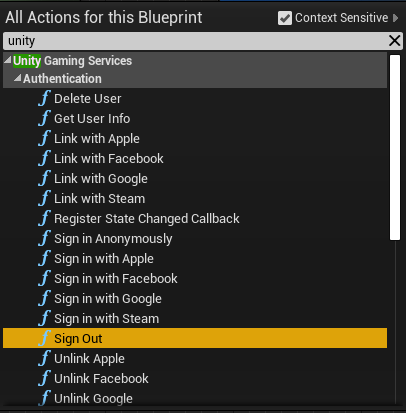

Before you continue with the following blueprint demonstrations, make sure you’ve successfully installed the Authentication SDK plugin and can view Authentication-related functions in a Blueprint’s event graph or function under Unity Gaming Services > Authentication.

Use

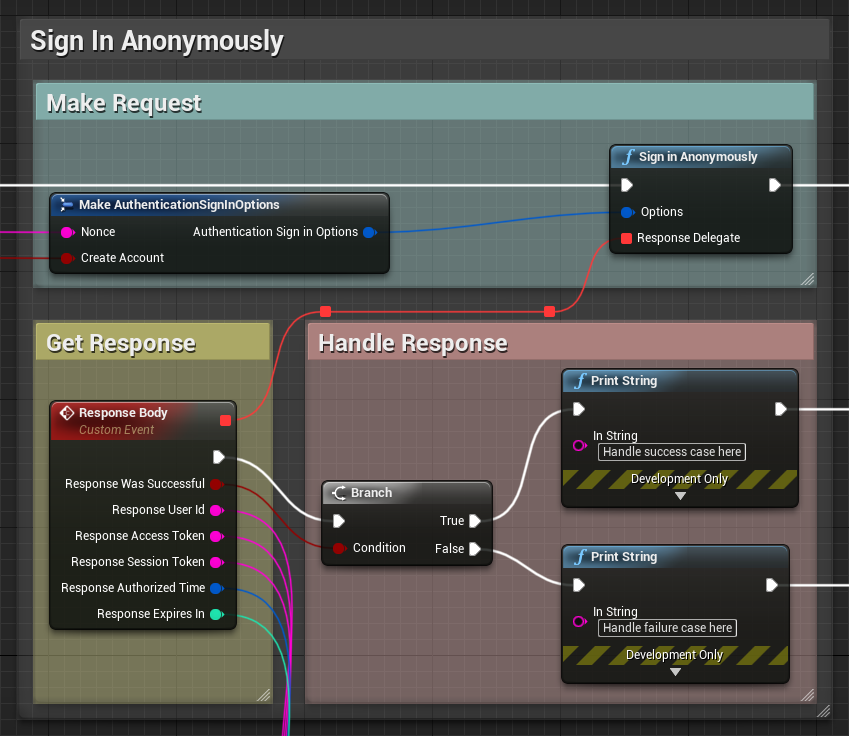

Sign In Anonymously

to anonymously authenticate. This is a quick way to authenticate without any user information, and requires no interaction with external providers. If successful, this populates the current player profile with the retrieved credentials returned from the Unity Authentication servers.

Sign In Anonymously

takes an

FAuthenticationSignInOptions

struct as a parameter that changes the way a sign-in is performed. More information about these parameters can be found on the official Unity API services documentation page. The response from the SDK can be handled in a custom event, which needs to take in an Authentication Response as an output pin. To isolate response variables, right-click the response body output pin and select Split Pin.

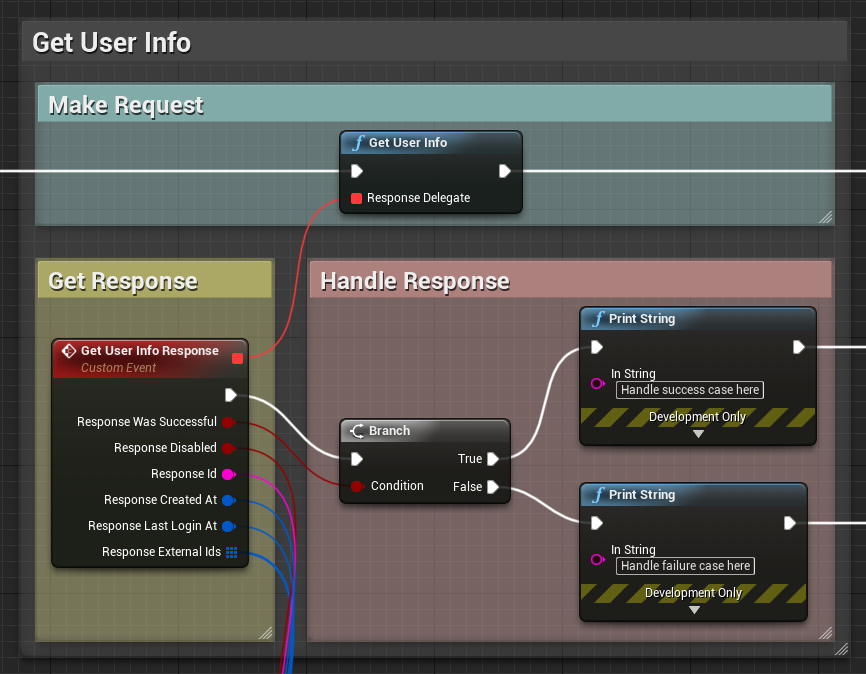

Get User Info

Use

Get User Info

to retrieve information about the currently authenticated user. This includes their user Id, authentication timestamps, and any external Identity providers that are linked to their session. The response from the SDK can be handled in a custom event, which needs to take in an Authentication User Response as an output pin, representing the user response from the Authentication SDK. To isolate response variables, right-click the response body output pin and select Split Pin.

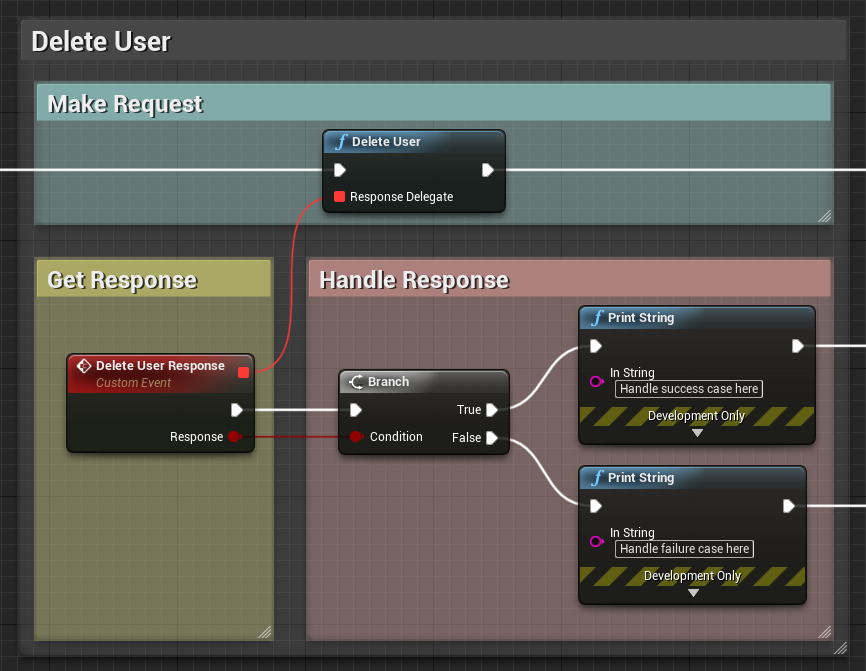

Delete User

Use

Delete User

to delete all information related to the currently authenticated player. This function also signs out the player, and deletes all player preferences and profiles connected to the player. The response from the SDK can be handled in a custom event, which needs to take in a

Boolean

as an output pin, representing whether the deletion was a success.

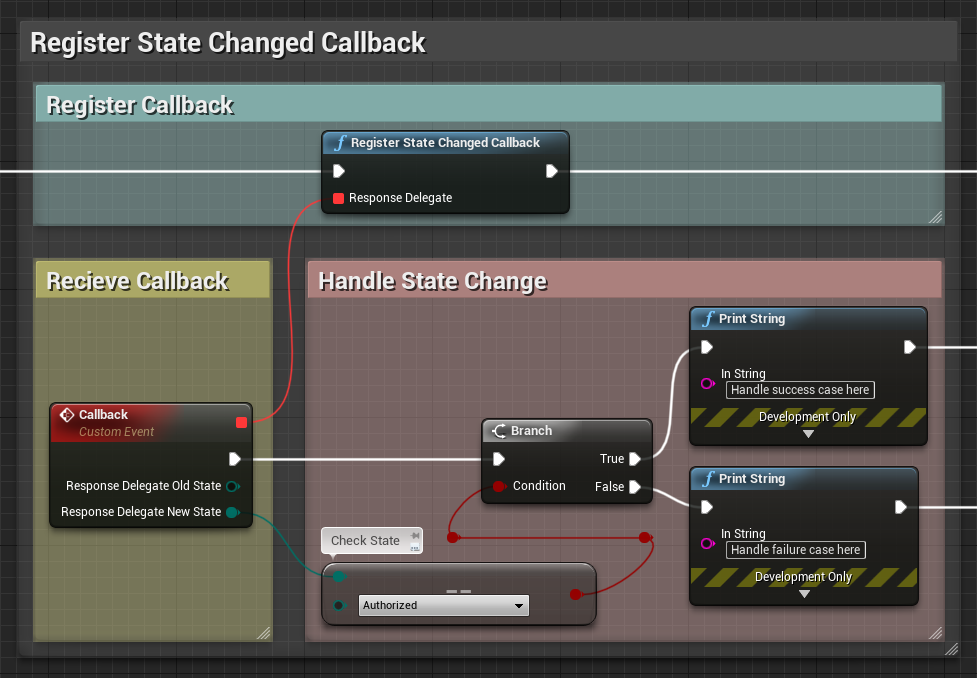

Register State Changed Callback

Use

Register State Changed Callback

to assign a callback function that invokes upon the state of the subsystem changing. For instance, the assigned function executes when a player has successfully authenticated and the subsystem state has changed to

Authorized

. The response from the SDK can be handled in a custom event, which needs to take in an Authentication State Changed Response as an output pin, representing the response from the Authentication SDK. To isolate response variables, right-click the response body output pin and select Split Pin.

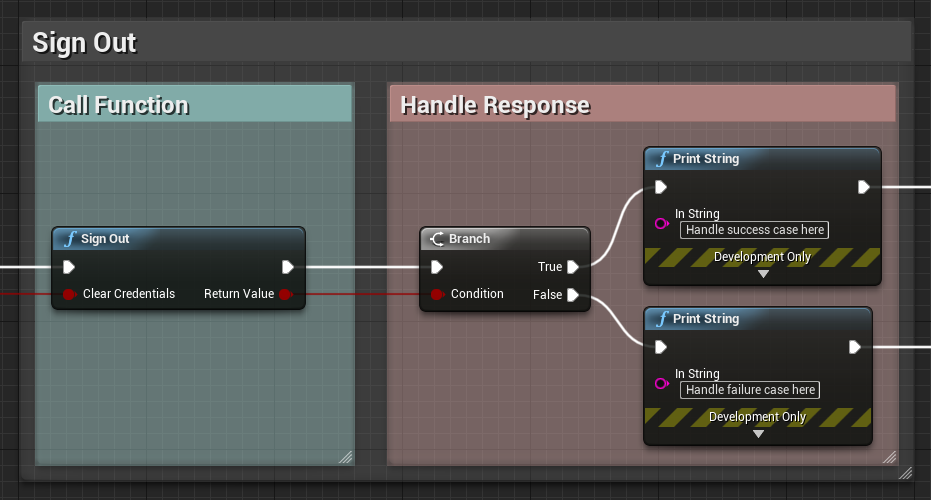

Sign Out

Use

Sign Out

to sign-out of the currently authenticated player profile. This removes the current player profile and switches to the default profile. This function also has an optional parameter to remove any stored credentials associated with this player.

Note

Sign Out

is used while using the default profile, then the profile information is cleared and the profile stays intact.

This function returns a

Boolean

representing whether the operation was a success.

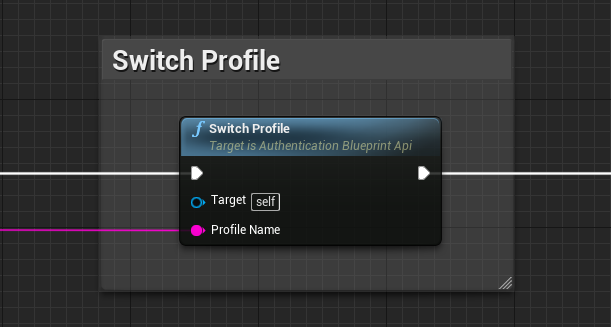

Switch Profile

Use

Switch Profile

to switch to, or create, a player profile.

Note

Switch Profile

can only be called while signed-out. If a profile switch is invoked while authenticated, a warning is logged and nothing happens.

Switch profile

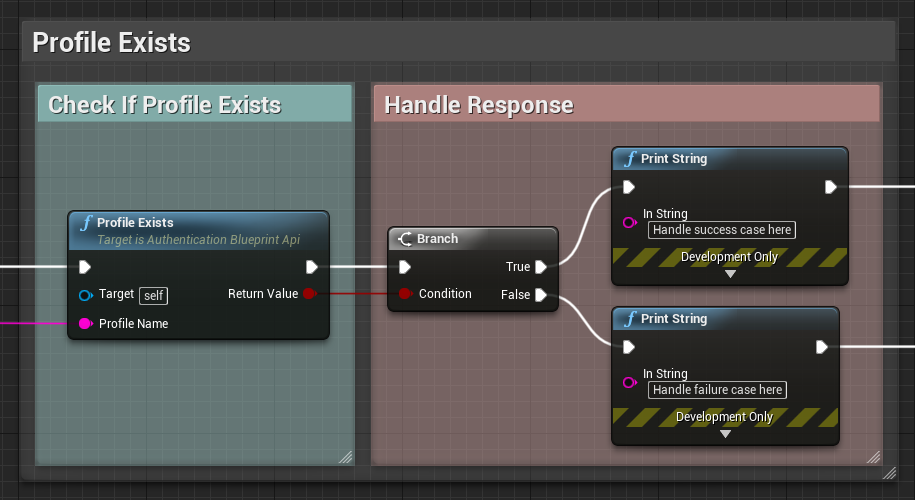

Profile Exists

Use

Profile Exists

to check if a given profile exists in the current session.

Note

Profile Exists

cannot detect profiles from previous sessions that have not been re-created in the current session.

This function returns a

Boolean

representing whether the given profile name exists in the current list of player profiles.

Profile exists

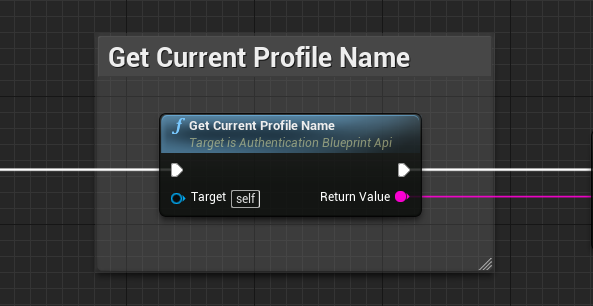

Get Current Profile Name

Use

Get Current Profile Name

to retrieve the name of the current player profile. This function returns a

String

representing the name of the current player profile being used by the Authentication subsystem.

Get current profile name

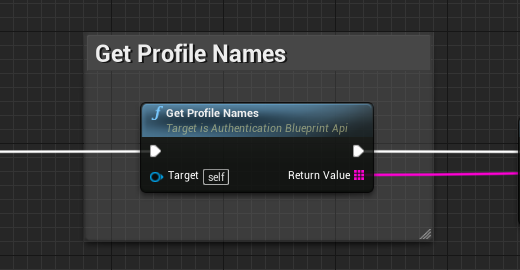

Get Profile Names

Use

Get Current Profile Names

to retrieve a list of all player profile names being used in the current session. This function returns a

String Array

representing all the names of the player profiles being used by the Authentication subsystem.

Get profile names

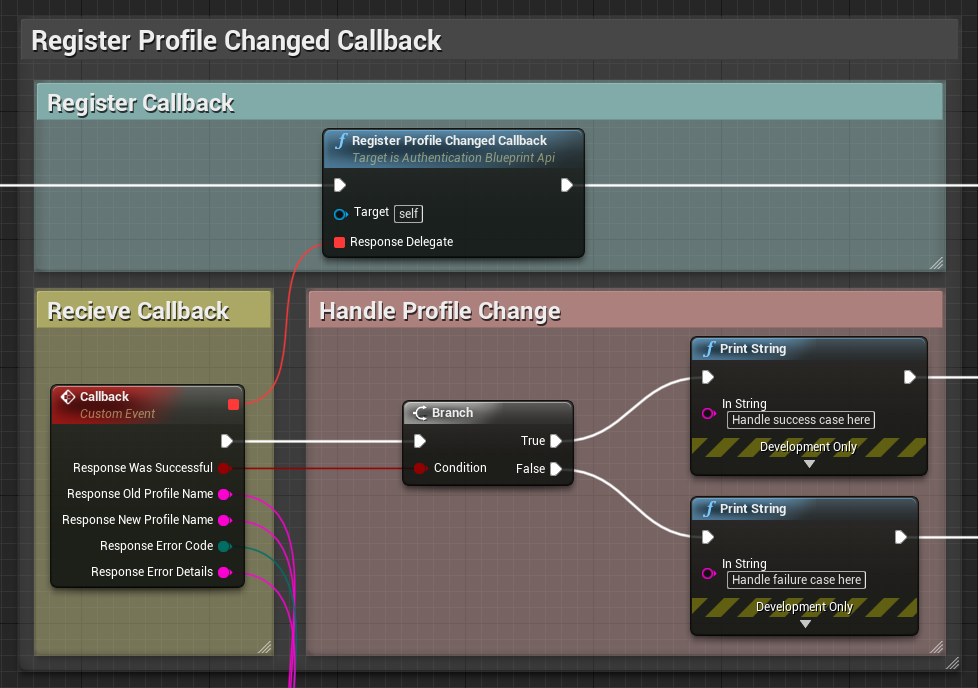

Register Profile Changed Callback

Use

Register Profile Changed Callback

to assign a callback function that invokes when a player profile changes. For instance, the assigned function executes when Switch Profile has executed successfully. The response from the SDK can be handled in a custom event, which needs to take in an Authentication Player Profile Changed Response as an output pin. To isolate response variables, right-click the response body output pin and select Split Pin.

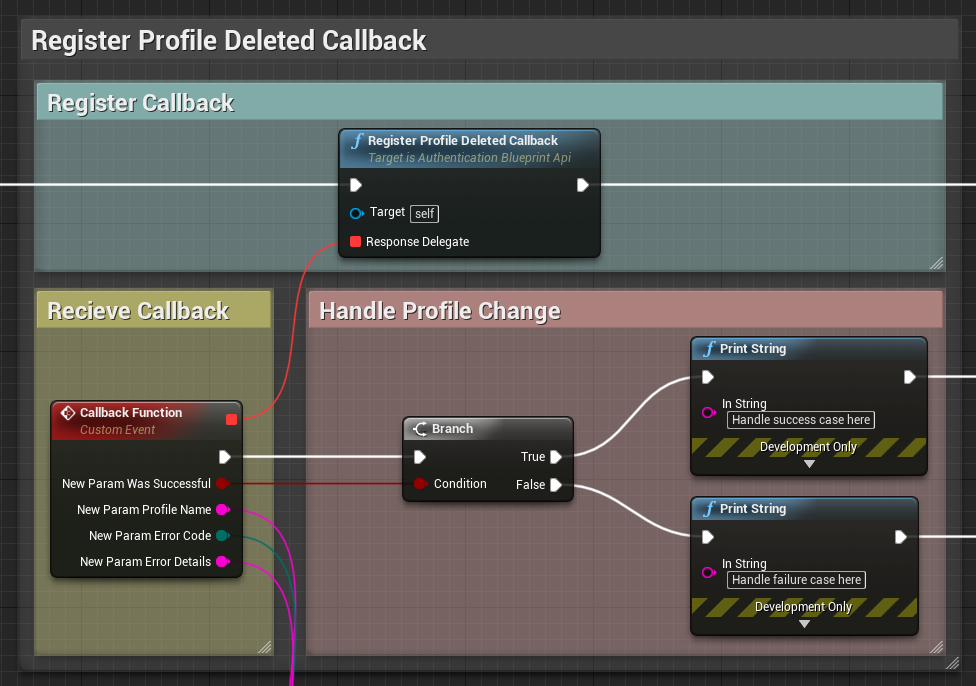

Register Profile Deleted Callback

Use the

Register Profile Changed Callback

function to assign a callback function that invokes when a player profile is removed from the current session. For instance, the assigned function executes when Sign Out has executed successfully. The response from the SDK can be handled in a custom event, which needs to take in an [Authentication Player Profile] Authentication Player Profile Deleted Response as an output pin. To isolate response variables, right-click the response body output pin and select Split Pin.

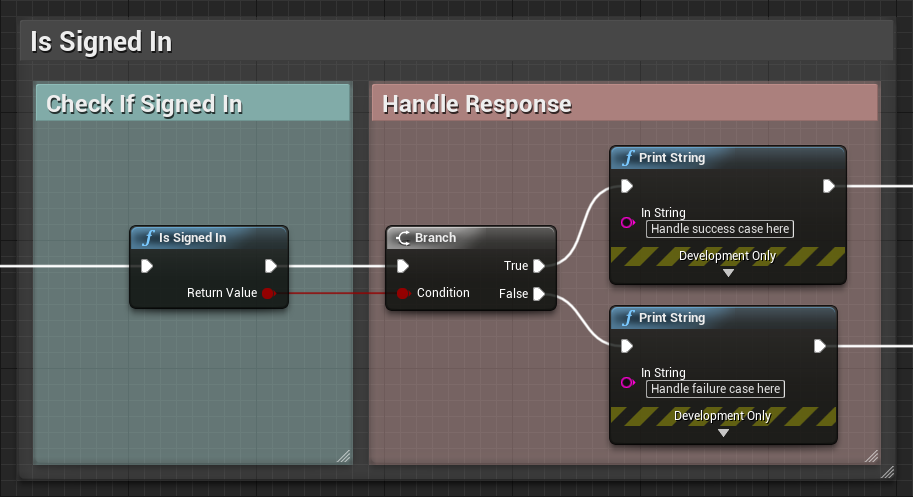

Is Signed In

Use

Is Signed In

to check whether the current player profile is signed-in. Being “Signed-In” is defined as being either Authorized or Expired. This function returns a

Boolean

representing whether the current player profile is signed-in.

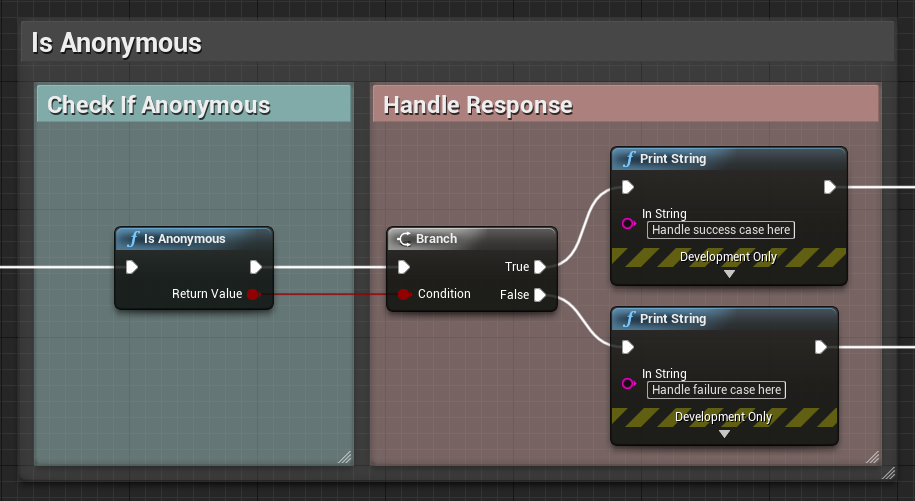

Is Anonymous

Use

Is Anonymous

to check whether the current player profile is signed-in anonymously. This should return true after executing

Sign In Anonymously

successfully. This function returns a

Boolean

representing whether the current player profile is signed-in anonymously. If the last sign-in was anonymous, this returns true even if the session has expired.

Is Authorized

Use

Is Authorized

to check whether the current player profile is signed-in and currently authorized. This function returns a

Boolean

representing whether the current player profile is signed-in and has been authorized successfully. This should return true after executing any sign-in function while the expiration time has not yet passed.

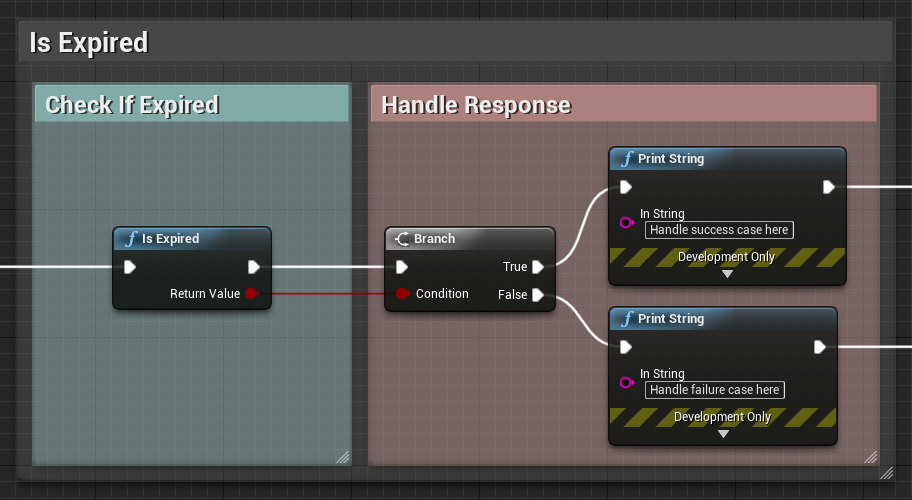

Is Expired

Use

Is Expired

to check whether the current player profile’s session has expired. This function returns a

Boolean

representing whether the current player profile’s session has gone past the returned expiry time from its initial Authentication Response.

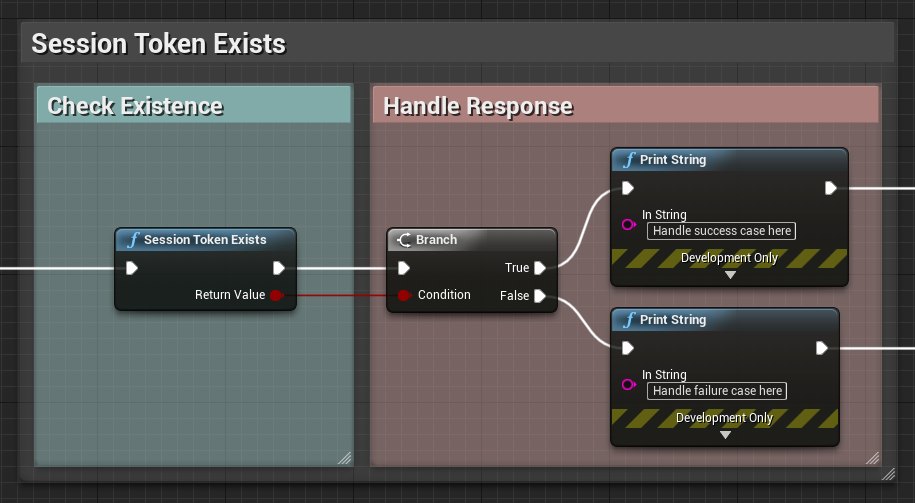

Session Token Exists

Use

Session Token Exists

to check whether a session token exists in player preferences for the current player profile. This function returns a

Boolean

representing whether the session token exists.

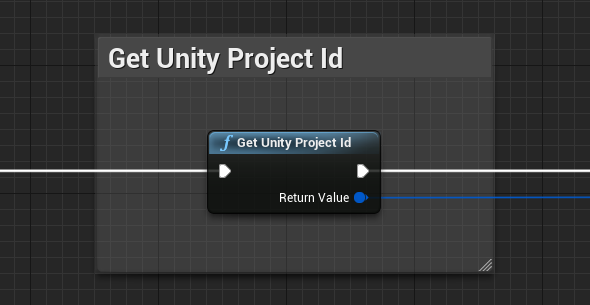

Get Unity Project Id

Use

Get Unity Project Id

to retrieve the Unity Project Id associated with the current authentication session. This function returns a

Guid

representing the current Project Id in use.

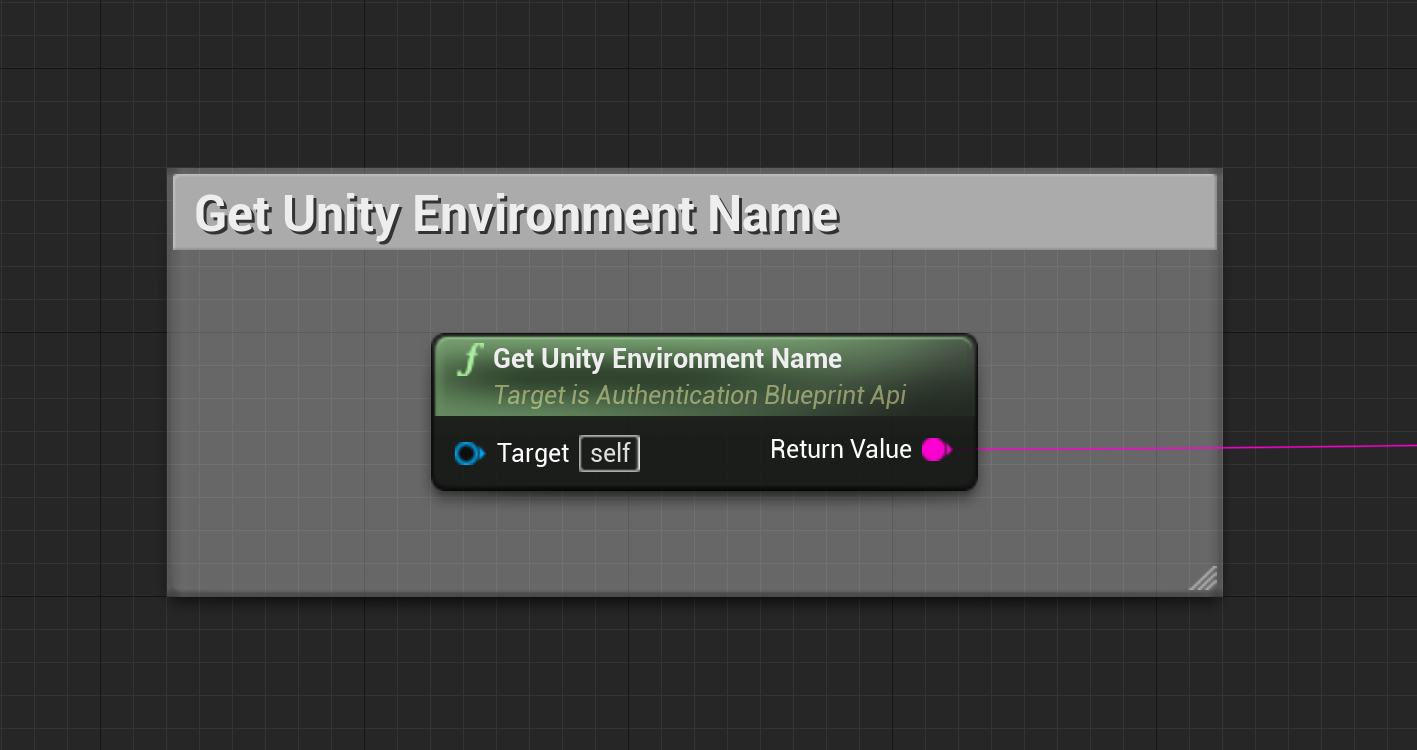

Get Unity Environment Name

Use

Get Unity Environment Name

to retrieve the name of the Unity Environment Name associated with the current authentication session. This function returns a

String

representing the current Environment in use.

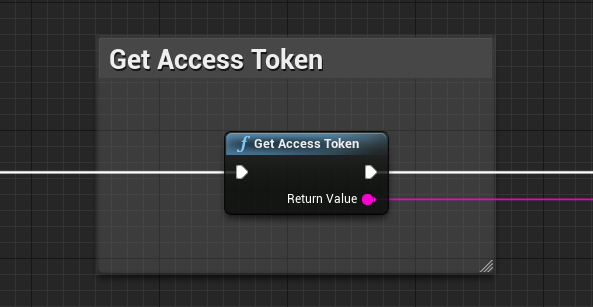

Get Access Token

Use

Get Access Token

to retrieve the access token for the current session. If none exists, this returns an empty string.

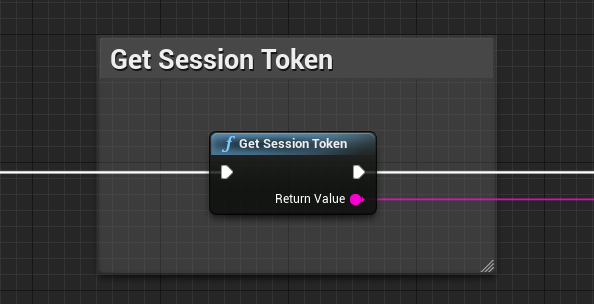

Get Session Token

Use

Get Session Token

to retrieve the session token for the current session. If none exists, this returns an empty string.

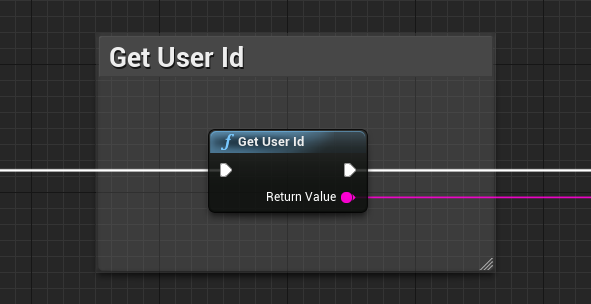

Get User Id

Use the

Get User Id

function to retrieve the user Id for the current session.

Note

This is different from the player profile name. The user Id is the unique user identifier returned from the Unity Authentication System.

This function returns a

String

representing the current player profile’s user Id. If none exists, this returns an empty string.

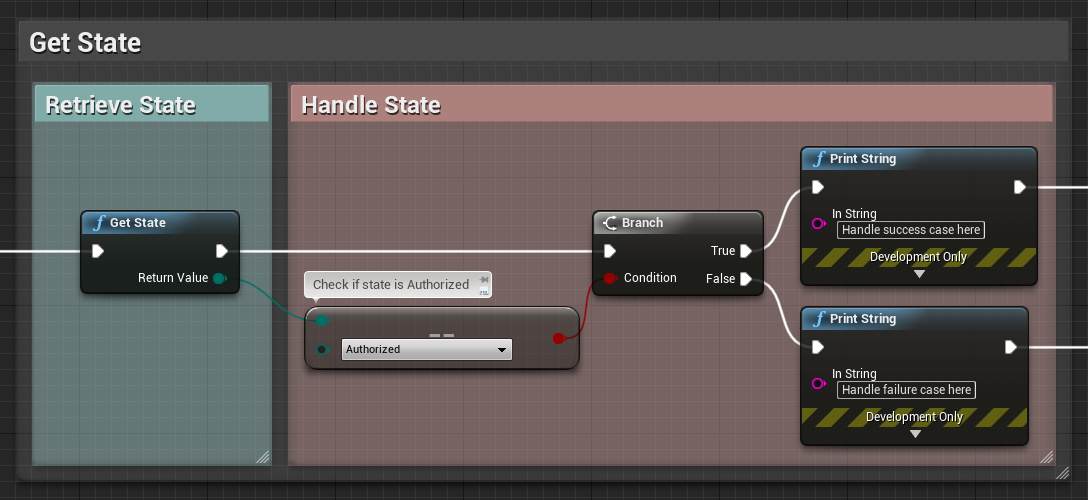

Get State

Use the

Get State

function to retrieve the current state of the authentication session. This function returns an

Enum

representing the state of the subsystem.

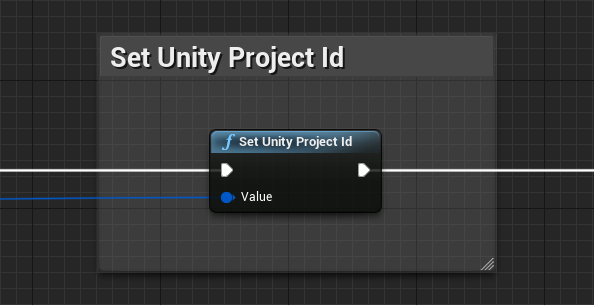

Set Unity Project Id

Use

Set Unity Project Id

to set the Unity Project Id for the current authentication session. This function takes a

Guid

Note

This overrides the Unity Project Id configured in Project Settings.

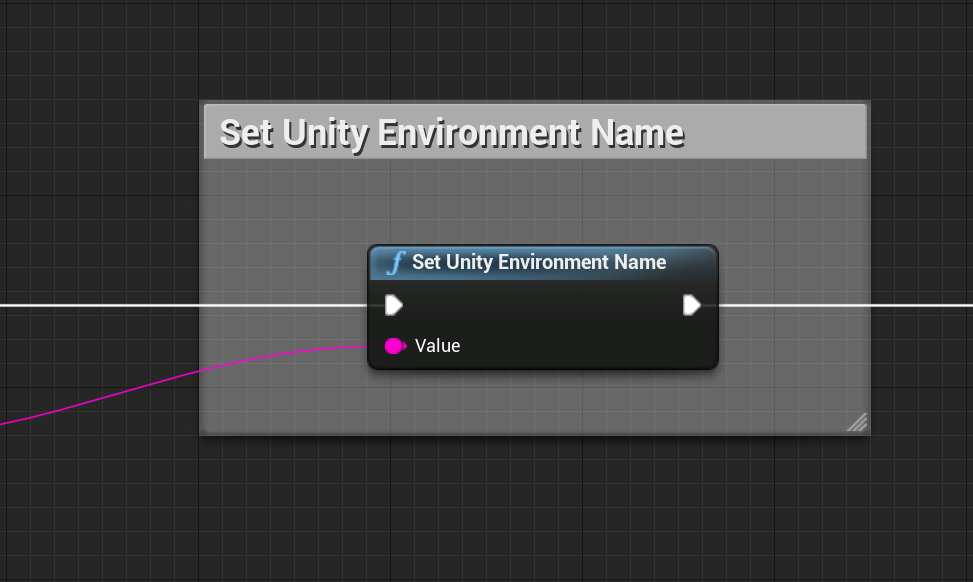

Set Unity Environment Name

Use

Set Unity Environment Name

to set the Unity Environment Name for the current authentication session. This function takes a

String

Note

This overrides the Unity Environment Name configured in Project Settings.
