Push Notifications SDK

Read time 5 minutes

Last updated 18 hours ago

Use the Push Notifications SDK to send push notification campaigns, including rich push notifications with images to your users.

Platform support

This SDK supports both iOS and Android. iOS 10+ and Android SDK >= 26 (Oreo) are supported.

Quick start

The SDK comes with a sample script that will register for push notifications. Add this to your project and set the relevant settings in the editor under Project Settings.

Registering for Push Notifications

To register for Push Notifications, three steps are required.

Populate settings in the editor. These can be found in Project Settings > Services > Push Notifications.
Initialize Unity Services, so the required analytics events can be sent to Unity Analytics. You also need to implement the privacy flow for the required events to be sent correctly.
Register for notifications in the startup code for your game, to ensure no notifications are missed. However, on first registration, a user is shown a permission request so ensure this call is made at a convenient place in your game. The SDK will handle the showing of notification content, including images, titles, and message body.

Note

Unity Analytics is required to ensure the events related to Push Notification data are sent correctly. For more details on how to handle privacy consent, refer to the Analytics documentation.

Code sample:


using Unity.Services.Analytics;using Unity.Services.Core;using Unity.Services.PushNotifications;...await UnityServices.InitializeAsync();bool userGaveConsent = ...;if (userGaveConsent){	AnalyticsService.Instance.StartDataCollection();}try{    PushNotificationsService.Instance.OnRemoteNotificationReceived += notificationData =>    {        Debug.Log("Received a notification!");    };    string pushToken = await PushNotificationsService.Instance.RegisterForPushNotificationsAsync();}catch (Exception e){    Debug.Log("Failed to retrieve a push notification token.");}

Notification Received callbacks

You can register a delegate to receive a C# event callback when a notification is received, to perform custom behavior at that point. To do this, add a delegate/method callback to

PushNotifications.OnNotificationReceived

as shown in the sample above.

Push Notifications settings

The SDK requires a number of settings to function correctly. Some settings are only used on a certain platform, indicated in the setting name. The following Android (Firebase) settings can be set: You can find these settings in the Unity Editor > Edit > Project Settings > Services > Push Notifications. The values for all the fields below is found in the Settings page of your Firebase dashboard.

FirebaseWebApiKey: The Web API Key for a Firebase project to be used for Android's Firebase Cloud Messaging API. If this isn't shown for your project, you might need to enable Firebase Authentication prior.
FirebaseProjectNumber: The Project Number to be used for Android's Firebase Cloud Messaging.
FirebaseAppID: The App ID for a Firebase application to be used for Android's Firebase Cloud Messaging API.
FirebaseProjectID: The Project ID for a Firebase project to be used for Android's Firebase Cloud Messaging API.

Note

If you don't have an Android App set up within Firebase, you need to add one. The Add app wizard will, besides creating your app in Firebase, also provide instructions on how to integrate the Firebase SDK immediately after. Note that you don't need to install the Firebase SDK, and can safely ignore all steps involving adding files or the Firebase SDK to your project.

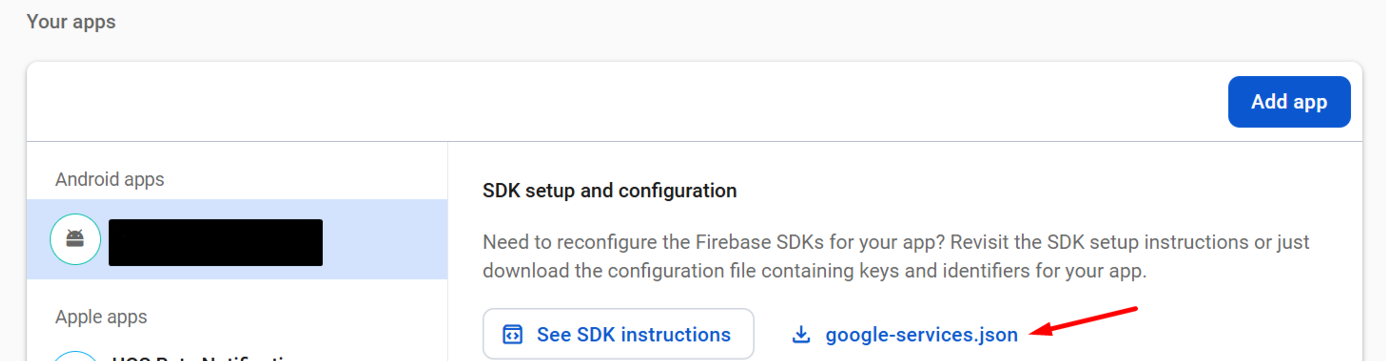

If the Web API Key from above is blank in your project then you can find it located in project Settings > General > Your Apps > google-services.json.

These settings are set in Edit > Project Settings > Services > Push Notifications.

Analytics

The SDK records two Analytics events:

notificationServices: This event is recorded whenever a new token is registered on the client. It contains the push token and is used to register this token with the backend service, to send notifications from the Unity Dashboard, and is required for proper functionality of this product.
notificationOpened: This event is recorded whenever a notification is opened by a user. It contains data regarding which campaign and cohort the user was in, and whether the app was launched from the notification.

Analytics-only mode

Warning

This section is only applicable if you're trying to use the Unity Dashboard Push Notification service alongside a separate Push Notification implementation. For most users this section is not required or recommended as it'll lead to reduced functionality of the product.

It's possible to integrate the SDK with an existing push notification service if required. To do so, do not call the registration methods as indicated above, and instead use the two methods in

PushNotificationsService.Instance.Analytics

alongside your existing implementation.

RecordPushTokenUpdated

should be called when you receive a new push token for a device. Note that the OS may create a new token at multiple points in the app's lifecycle, so call this whenever the token changes, and not just at startup. The full call is

PushNotificationsService.Instance.Analytics.RecordPushTokenUpdated(token);

RecordNotificationOpened

should be called when a notification is opened. It takes a dictionary that is the data the notification payload contained, and a boolean flag to indicate whether the app was launched from the notification or not. The full call is

PushNotificationsService.Instance.Analytics.RecordNotificationOpened(notificationData);

Note that this should allow you to send and schedule notifications from the Unity Dashboard. However, it greatly depends on the other push notification implementation you have implemented, and may lead to missing images or other content in notifications, so it's strongly recommended to use the standard set up, with this SDK being the only Push Notifications solution integrated, if possible.

Testing the SDK integration

You can test the Push Notifications SDKs integration by following these steps within your app.

Note

These require that you follow the steps within Get Started.

Within your app, fetch the PushNotificationsService token and write it to the log using `Debug.Log`.
Follow the debugging guide for Android or the Build and Run guide for IOS, depending on your target platform, to run your app.
Read the app logs to fetch the logged token.
1. For Android: Use the Android Logcat package.
2. For IOS: Check the logs inside XCODE when running the app.
Within the Unity Dashboard, go to an existing Push Notification Campaign or create a test one.
Inside the Content step, create your notification if necessary and select Test on Device.
Select the target device and input the fetched token.
Select Send and verify if the device receives the notification.

External Dependency Manager for Unity (EDM4U) support

Note

Applicable to users integrating EDM4U or MDR alongside Push Notifications.

Other SDKs or Unity Packages, including Google’s Firebase unity packages, use the External Dependency Manager for Unity (EDM4U) or Mobile Dependency Resolver (MDR) to resolve their dependencies inside the Unity Project. The Push Notifications SDK does not require the use of EDM4U or MDR to resolve its dependencies within the Unity project, nor does it redistribute or use EDM4U or MDR by default. However, starting from version

3.0.1-pre.1

, if either EDM4U or MDR is used, the Push Notifications SDK integrates with them by generating a dependency file (PushSDKDependencies.xml) for them to use inside the automatically generated

Assets/Push Notifications/Editor/Android

directory. Before building your application, you should run

Resolve

Force Resolve

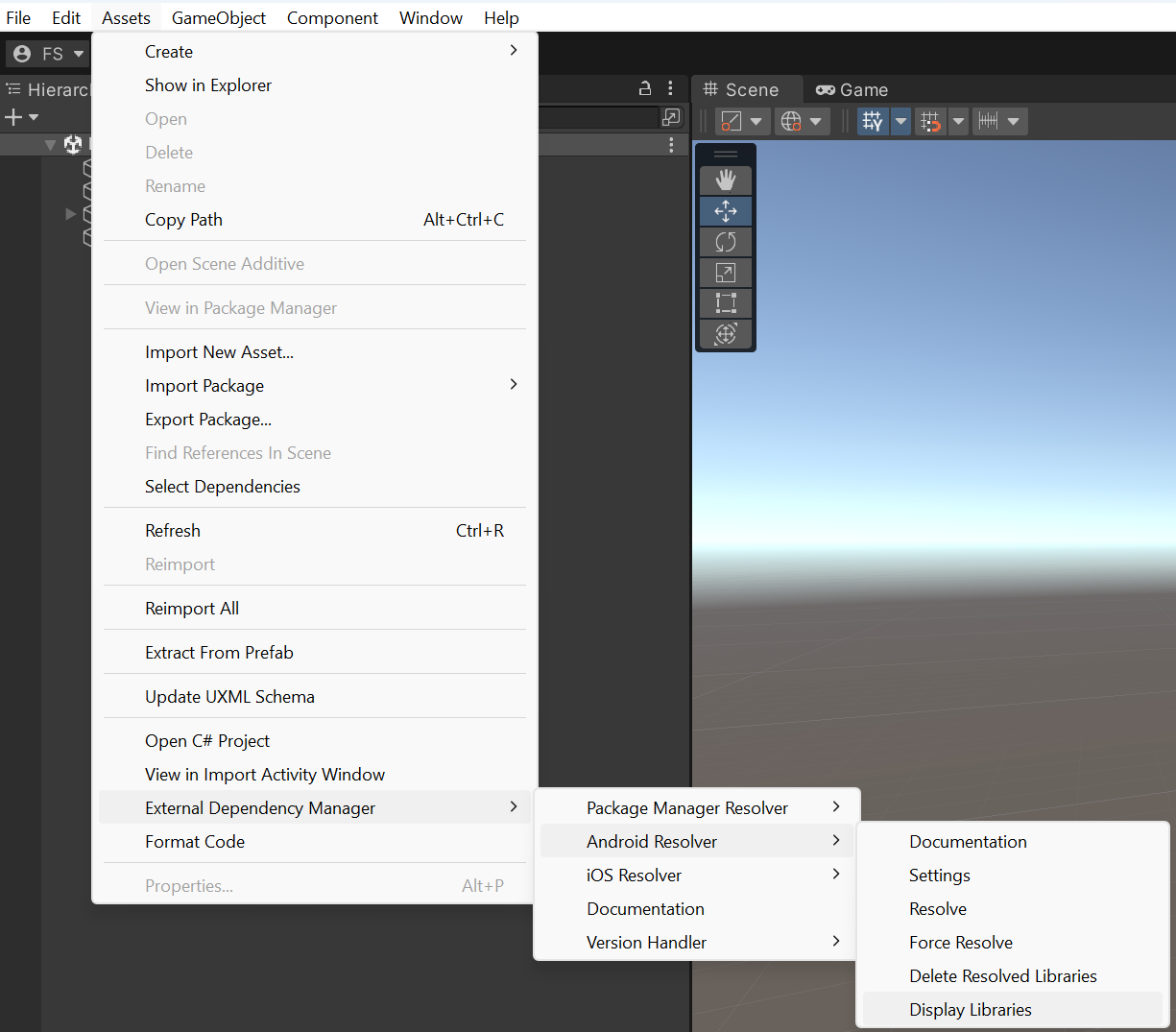

(Both under Assets -> External Dependency Manager -> Android Manager) to make sure that the dependencies for the Push Notifications SDK are resolved. You can verify these dependencies have been resolved by using the

Display Libraries

option (Assets -> External Dependency Manager -> Android Manager -> Display Libraries)

The following line should appear:


implementation 'com.google.firebase:firebase-messaging-ktx:22.0.0' // Assets/Push Notifications/Editor/Android/PushSDKDependencies.xml:9

Note that the comment might be different if other packages also require the same dependency. If this is the case, EDM4U will list in the adjacent comment all files from where the dependency was extracted. So long as the dependency file path (

Assets/Push Notifications/Editor/Android/PushSDKDependencies.xml:9

) appears within the comment, you can be sure that EDM4U / MDR has detected and read the dependency file successfully. If this line does not appear, ensure that the dependency file exists under the

Assets/Push Notifications/Editor/Android

directory, and try using the

Force Resolve

option again (Assets -> External Dependency Manager -> Android Manager -> Force Resolve). If the dependency file hasn't been generated, re-open your project. The dependency file should be generated as part of this process.
