Setting up a service for the licensing server#

This task is part of the end-to-end process for setting up the Unity Licensing Server.

After you've tested the licensing server, you can set up a service to automatically start the licensing server on startup. You can also manually pause, stop, and restart the process.

Although optional, setting up a service to run the licensing server process is a recommended best practice.

After you set up this service, be sure to back up the licensing server configuration. Refer to Backing up and restoring.

Creating a service#

To create a service for stopping and starting the licensing server, follow the instructions based on your operating system:

• Linux
• Windows

Creating a service on Linux#

The create-service command does the following:

• Creates a systemd service unit called unity.licensing.server.service.
• Configures the service to run under the current non-root user account.
• Configures the service to start automatically on startup.
• Starts the service.

1. To create the service, run the following command:

   sudo ./Unity.Licensing.Server create-service

   Output similar to the following displays:

   - - - -
   Welcome to Unity Licensing Server create service command line interface.
   This command line interface will help you create Unity.Licensing.Server service.
   - - - -

   Creating service for user 'adminuser' ...
   Enabling service to start automatically after (re)boot ... Done
   Starting service ... Done
   unity.licensing.server.service has been successfully created and running.

2. To check the status of the service, run the following command:

   sudo systemctl status unity.licensing.server.service

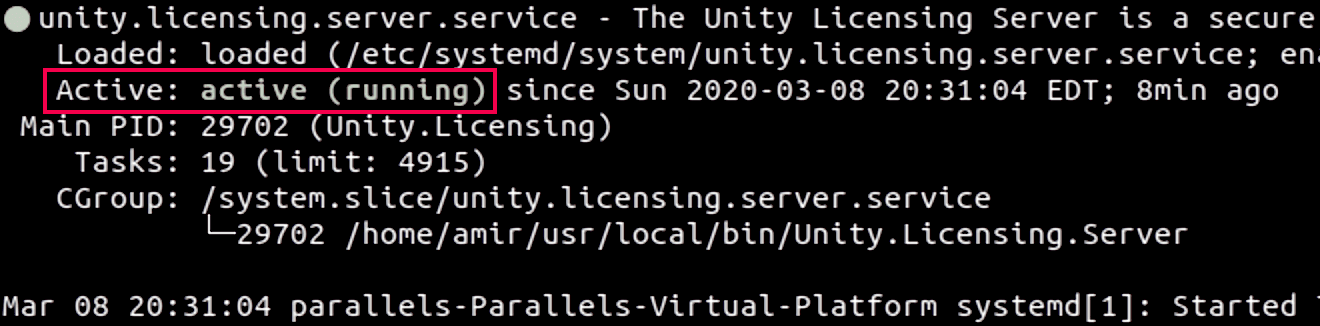

   Look for Active: active running in the output in the Terminal:



Creating a service on Windows#

The create-service command requires administrator privileges. Before you start, make sure you start the PowerShell window with elevated privileges. You must use an administrator account and a password that isn't blank.

1. Give the user the right to log on as a service. To assign this right:

   • Search for Local Security Policy in Windows Search and open the policy editor.

   • In the left menu, navigate to Security Settings > Local Policies > User Rights Assignment and select Log on as service.

   • Click Add User or Group.

   • Type the user name in the text box and click Check Names > OK.

   • Click OK.

2. To create the service, start the PowerShell window with elevated privileges and run the following command:

   .\Unity.Licensing.Server.exe create-service

3. Enter the password of the administrator account that was used to create the service. The create-service command returns output similar to the following:

   - - - -
   Welcome to Unity Licensing Server create service command line interface.
   This command line interface will help you create Unity.Licensing.Server service.
   - - - -

   Enter password for user 'HQ\adminuser':  ***********
   Windows service installation successful!
   Service Name = Unity.Licensing.Server
   Description = The Unity Licensing Server is a secure web server to host and
   manage Unity licenses on your local network

4. To check the status of the service, run the following command:

   sc.exe query Unity.Licensing.Server

   Look for the STATE information in the output in the PowerShell window:

   SERVICE_NAME: Unity.Licensing.Server
           TYPE               : 10  WIN32_OWN_PROCESS
           STATE              : 4  RUNNING
                                   (STOPPABLE, NOT_PAUSABLE, ACCEPTS_SHUTDOWN)
           WIN32_EXIT_CODE    : 0  (0x0)
           SERVICE_EXIT_CODE  : 0  (0x0)
           CHECKPOINT         : 0x0
           WAIT_HINT          : 0x0

If the STATE value shows anything other than 4 RUNNING, open Windows Services and look for the Unity.Licensing.Server service to manage it.

Restarting the service#

You can stop or restart the licensing server service using standard operating system commands.

Follow the instructions based on your operating system:

• Linux
• Windows

Restarting the service on Linux#

1. Run the following command to start or restart the licensing server service:

   sudo systemctl restart unity.licensing.server.service

2. Run the following command to verify that the service is running:

   sudo systemctl status unity.licensing.server.service | grep Active

   If the service is running, the output from the previous command is similar to the following:

   Active: active (running) since Fri 2020-02-14 16:44:59 EST; 2s ago

Restarting the service on Windows#

1. Run the following command to start or restart the licensing server service:

   sc.exe query Unity.Licensing.Server | findstr /i State

2. If the output lists STATE: 4 RUNNING, run the following command to stop the service:

   sc.exe stop Unity.Licensing.Server

3. If the output lists STATE: 1 STOPPED, run the following command to restart the service:

   sc.exe start Unity.Licensing.Server

4. To check the state of the service again, run the following command:

   sc.exe query Unity.Licensing.Server | findstr /i State

When the output shows STATE: 4 RUNNING, you have successfully restarted the service.

Deleting the service#

If you need to delete the licensing server service, follow the instructions based on your operating system:

• Linux
• Windows

Deleting the service on Linux#

To delete the licensing server service:

1. Run the following command to stop the service:

   sudo systemctl stop unity.licensing.server.service

2. Run the following command to disable the service and prevent it from running on the next startup:

   sudo systemctl disable unity.licensing.server.service

3. Run the following command to verify that you disabled the service:

   sudo systemctl status unity.licensing.server.service | grep Loaded

   If the service is disabled, the output from the previous command is similar to the following:

   Loaded: loaded (/etc/systemd/system/unity.licensing.server.service; **disabled**; vendor preset: enabled)

4. Run the following command to delete the service unit:

   sudo rm -rf /etc/systemd/system/unity.licensing.server.service

5. Run the following command to reflect the change:

   sudo systemctl daemon-reload

Deleting the service on Windows#

To delete the licensing server service:

1. Run the following command to stop the service:

   sc.exe stop Unity.Licensing.Server

2. Run the following command to check the server status:

   sc.exe query Unity.Licensing.Server | findstr /i State

3. If the output lists STATE: 1 STOPPED, run the following command to delete the service:

   sc.exe delete Unity.Licensing.Server

   The following message displays after you delete the service:

   [SC] DeleteService SUCCESS

Next steps#

Proceed to backing up and restoring to continue setting up your licensing server.
