Backfill

Allow players to join matches that have already started and keep servers full as players leave.

Read time 5 minutes

Last updated 6 months ago

Important

Unity Matchmaker will support Multiplay Hosting until the deprecation date of March 31st, 2026. To aid your migration away from Multiplay Hosting, migration examples for alternative hosting providers are available. Matchmaker will continue to work with Relay and Distributed Authority after the Multiplay Hosting deprecation.

Backfill is a flow that allows players to join a game that has already started. Backfill can have different goals:

To start a match faster, without all the required players. In this case, backfill is initiated by the Matchmaker when the Matchmaker configuration has the
```
backfill
```
property set to
```
true
```
.
To keep a steady number of players in a match even if players are leaving. In this case, the game server initiates the backfill when creating a backfill ticket.

Note

Even if a configuration has the property

backfill

set to

false

, backfill will still work when a backfill ticket is created.

Optimize matchmaking configuration for backfill use cases

For backfilling, it is not recommended to set the minimum number of players to create a match to one (1). This might result in the creation of a large number of matches which can prevent backfilling from working efficiently. This is especially true when there is a low number of servers backfilling at the same time. Instead, the recommended best practice is to set the minimum number of players to a large number, or equal to the maximum number of players in a match, and to relax that minimum number of player to a lower number after a little while (at least four seconds).

Example

The following example shows that the first match is created if there are 60 players in the match, and then after five seconds, the subsequent match is created if at least one player is in the match.


{  "Name": "60 Players",  "MatchDefinition": {    "Teams": [      {        "Name": "Team",        "TeamCount": {          "Min": 1,          "Max": 1        },        "PlayerCount": {          "Min": 60,          "Max": 60,          "Relaxations": [            {              "Type": "RangeControl.ReplaceMin",              "AgeType": "Oldest",              "Value": 1,              "AtSeconds": 5            }          ]        },        "TeamRules": []      }    ],    "MatchRules": []  },  "BackfillEnabled": true}

Backfill flow

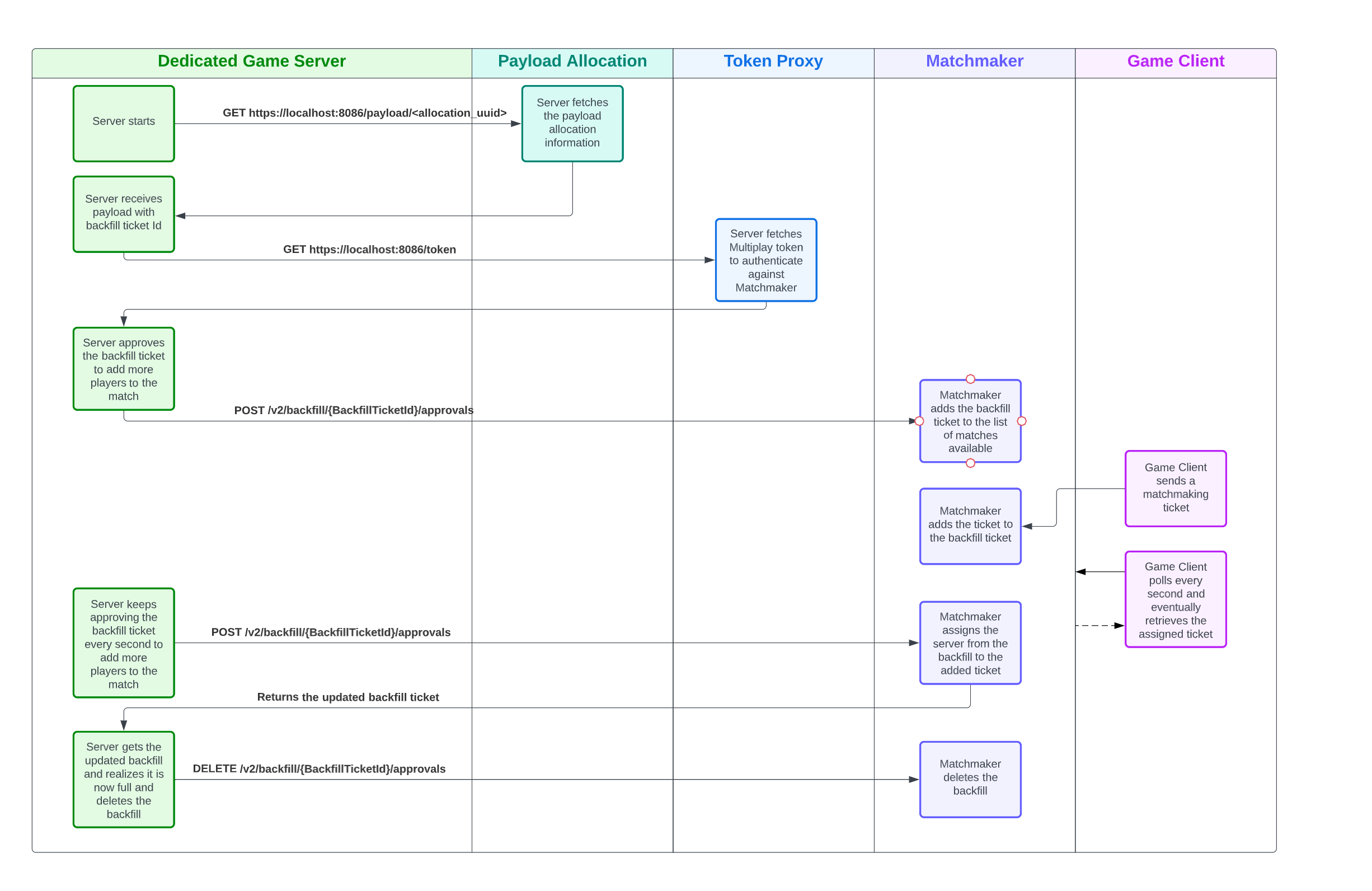

The following diagram shows the backfill flow

When the server is allocated, it fetches the allocation payload information and the matchmaking results. The matchmaking results contain the backfill ticket ID that was created by the matchmaker as well as important information needed to create backfill tickets.
The server uses a service account token to authenticate the game server to the Matchmaker service. Refer to Admin authentication.
The game server approves the backfill ticket every second. This is required to prove to the Matchmaker service that the game server is still running.
When a new ticket comes in, if it is compatible, the Matchmaker service will add it to an existing backfill ticket.
Once the ticket is added to a backfill match, the next time the game server approves the backfill ticket, the player ticket will be assigned to the server.
Once the match is full, the game server deletes the backfill ticket.

A game server is responsible for keeping a backfill ticket up-to-date. For example, if a player leaves or joins the server outside of Matchmaker, the game server needs to inform the Matchmaker service by updating the backfill ticket. When a game server needs to backfill players who have left the game and there aren't any backfill tickets, the game server creates a new backfill ticket.

Note

If a backfill ticket is not approved regularly by the game server, then the Matchmaker service automatically deletes the ticket. If a backfill ticket is not approved regularly by the game server, then the Matchmaker service automatically deletes the ticket. Regular approval ensures that backfill tickets are only valid as long as the game server is running.

Note

If a backfill ticket is deleted, either timed out by the Matchmaker service or by the game server, the tickets that were not assigned are put back into the pool of tickets.

Create a backfill ticket

The following code sample demonstrates how to create a backfill ticket from a game server:

Unity SDK


// Set the Match Properties. These properties can also be found in the Allocation Payload (cf Allocation Payload)var teams = new List<Team>{                    new Team( "Red", "9c8e302e-9cf3-4ad6-a005-b2604e6851e3", new List<string>{ "c9e6857b-a810-488f-bacc-08d18d253b0a"  } ),                    new Team( "Blue", "e2d8f4fd-5db8-4153-bca7-72dfc9b2ac09", new List<string>{ "fe1a52cd-535a-4e34-bd24-d6db489eaa19"  } ),                };// Define the Players of the match with their data.var players = new List<Unity.Services.Matchmaker.Models.Player>{   new (       "c9e6857b-a810-488f-bacc-08d18d253b0a",       new Dictionary<string, object>       {           { "Team", "Red" }       }),   new (       "fe1a52cd-535a-4e34-bd24-d6db489eaa19",       new Dictionary<string, object>       {           { "Team", "Blue" }       })};var matchProperties = new MatchProperties(teams, players);var backfillTicketProperties = new BackfillTicketProperties(matchProperties);// Set options for matchmakingvar options = new CreateBackfillTicketOptions("queue", "127.0.0.1:8080", new Dictionary<string, object>(), backfillTicketProperties);// Create backfill ticketstring ticketId = await MatchmakerService.Instance.CreateBackfillTicketAsync(options);// Print the created ticket idDebug.Log(ticketId);

CURL


# Fetch a Multiplay tokencurl --location 'http://localhost:8086/token'# Transform match properties in a base64 formatmatchProperties=$(echo '{  "matchProperties": {    "teams": [      {        "teamName": "Red Team",        "teamId": "14f18a3e-921d-4165-90b6-ada353e186ca",        "playerIDs": [          "c9e6857b-a810-488f-bacc-08d18d253b0a"        ]      },      {        "teamName": "Blue Team",        "teamId": "5aa8ae3b-d5b6-463a-9795-9bc10210dc86",        "playerIDs": [          "fe1a52cd-535a-4e34-bd24-d6db489eaa19"        ]      }    ],    "players": [      {        "id": "c9e6857b-a810-488f-bacc-08d18d253b0a",        "customData": {          "Team": "Red"        }      },      {        "id": "fe1a52cd-535a-4e34-bd24-d6db489eaa19",        "customData": {          "Team": "Blue"        }      }    ],    "region": "05083faf-3795-47b8-a0dc-c626089c5ac9",    "backfillTicketId": "dc156067-d140-4c5e-b7d4-90ec51c8333f"  }}' | base64)# Send create backfill ticket requestcurl --location --request POST 'https://matchmaker.services.api.unity.com/v2/backfill' \--header 'Authorization: Bearer <MULTIPLAY TOKEN>' \--header 'Content-Type: application/json' \--data-raw '{  "poolId": "e642781a-558f-4c56-a135-c655331cdeee”, # Information retrieved from the allocation payload  "connection": "127.0.0.1:8081",  "properties": {    "data":  "'+$matchProperties+'"  }}'

Approve a backfill ticket

When approving a backfill ticket, the game server informs the Matchmaker that the game server is still running and expecting new tickets from the Matchmaker. Unity suggests approving a backfill ticket every second. If there isn’t a call to approve the backfill ticket after a while, the Matchmaker service automatically deletes the ticket. The following code sample demonstrates how to approve a backfill ticket:

Unity SDK


// Approve a backfill ticket// The backfill ticket retrieved as a response can then be updated to be used in the Update APIvar backfillTicket = await MatchmakerService.Instance.ApproveBackfillTicketAsync("<backfill ticket id here>");

CURL


curl --location --request POST 'https://matchmaker.services.api.unity.com/v2/backfill/{BackfillTicketId}/approvals' \--header 'Authorization: Bearer <MULTIPLAY TOKEN>' \--header 'Content-Type: application/json'

Update a backfill ticket

Backfill tickets should be updated when a new player joins the match from outside Matchmaker, or when a player leaves the match. Updating backfill tickets enables the game server to inform Matchmaker that the match composition has changed. The following code sample demonstrates how to update a pre-existing backfill ticket:

Unity SDK


// Retrieve the backfill information from the approve backfill callvar backfillTicket = await MatchmakerService.Instance.ApproveBackfillTicketAsync("1459800b-d463-4197-a903-f00041fdbf6f");// Add a new player to the backfill ticketvar newPlayer = new Player(   "6ebbc1f9-1c42-479c-b80d-9b6f6aa281f3",   new Dictionary<string, object>   {       { "Team", "Red" }   });backfillTicket.Properties.MatchProperties.Players.Add(newPlayer);backfillTicket.Properties.MatchProperties.Teams[0].PlayerIds.Add(newPlayer.Id);// remove a player from the backfill ticketvar playerIdToRemove = "fe1a52cd-535a-4e34-bd24-d6db489eaa19";var playerToRemove = backfillTicket.Properties.MatchProperties.Players.FirstOrDefault(p => p.Id.Equals(playerIdToRemove));backfillTicket.Properties.MatchProperties.Players.Remove(playerToRemove);backfillTicket.Properties.MatchProperties.Teams[0].PlayerIds.Remove(playerIdToRemove);await MatchmakerService.Instance.UpdateBackfillTicketAsync(backfillTicket.Id, backfillTicket);

CURL


# Fetch a Multiplay tokencurl --location 'http://localhost:8086/token'# Transform match properties in a base64 formatmatchProperties=$(echo '{  "matchProperties": {    "teams": [      {        "teamName": "Red Team",        "teamId": "14f18a3e-921d-4165-90b6-ada353e186ca",        "playerIDs": [          "6ebbc1f9-1c42-479c-b80d-9b6f6aa281f3",        ]      },      {        "teamName": "Blue Team",        "teamId": "5aa8ae3b-d5b6-463a-9795-9bc10210dc86",        "playerIDs": [          "fe1a52cd-535a-4e34-bd24-d6db489eaa19"        ]      }    ],    "players": [      {        "id": "6ebbc1f9-1c42-479c-b80d-9b6f6aa281f3",        "customData": {          "Team": "Red"        }      },      {        "id": "fe1a52cd-535a-4e34-bd24-d6db489eaa19",        "customData": {          "Team": "Blue"        }      }    ],    "region": "05083faf-3795-47b8-a0dc-c626089c5ac9",    "backfillTicketId": "dc156067-d140-4c5e-b7d4-90ec51c8333f"  }}' | base64)# Send update backfill ticket requestcurl --location --request PUT 'https://matchmaker.services.api.unity.com/v2/backfill/{BackfillTicketId}' \--header 'Authorization: Bearer <MULTIPLAY TOKEN>' \--header 'Content-Type: application/json' \--data-raw '{  "poolId": "e642781a-558f-4c56-a135-c655331cdeee”, # Information retrieved from the allocation payload  "connection": "127.0.0.1:8081",  "properties": {    "data":  "'+$matchProperties+'"  }}'

Note

When a backfill ticket is updated by the game server, all unassigned tickets are released into the pool of tickets.

Delete a backfill ticket

A backfill ticket should be deleted when:

The server doesn’t require new tickets.
The server is stopping.

The following code sample demonstrates how to delete a backfill ticket:

Unity SDK


await MatchmakerService.Instance.DeleteBackfillTicketAsync("1459800b-d463-4197-a903-f00041fdbf6f");

CURL


curl --location --request DELETE 'https://matchmaker.services.api.unity.com/v2/backfill/{BackfillTicketId}' \--header 'Authorization: Bearer <MULTIPLAY TOKEN>' \--header 'Content-Type: application/json'
