Introduction to native plug-ins on iOS

Introduces native plug-ins for iOS and their structure.
Read time 2 minutesLast updated 4 days ago
An introduction to native plug-ins for iOS and their structure.

Native plug-in components

A native plug-in consists of precompiled binaries. For Apple platforms, you can use the following file types:
  • Source files: For example,
    .m
    ,
    .mm
    ,
    .c
    ,
    .cpp
    , or
    .swift
  • Static libraries and frameworks: For example,
    .a
    ,
    .framework
    , or
    .xcframework
    .
Native plug-ins allow you to perform tasks that aren't possible with C# alone. For example, you can use them to perform the following actions:
  • Invoke native Apple system framework APIs.
  • Integrate third-party SDKs and libraries intended for use on the target platform.
  • Access platform features that aren't exposed through a Unity API.
  • Hook into the application lifecycle, the rendering pipeline, or low-level native APIs, to manage features like background modes or push notifications.
A basic native plug-in contains the following:
  • Native plug-in files: The native source code or binary files.
  • C# API layer: Provides the calls that connect your managed C# scripts to the native code, acting as a bridge to access the functionality of the plug-in.
Note
During the build process, Unity copies your native plug-in files (including source code, libraries, and binaries) into the generated Xcode project. Xcode then compiles any native source code and links all the plug-in files to create the final application.

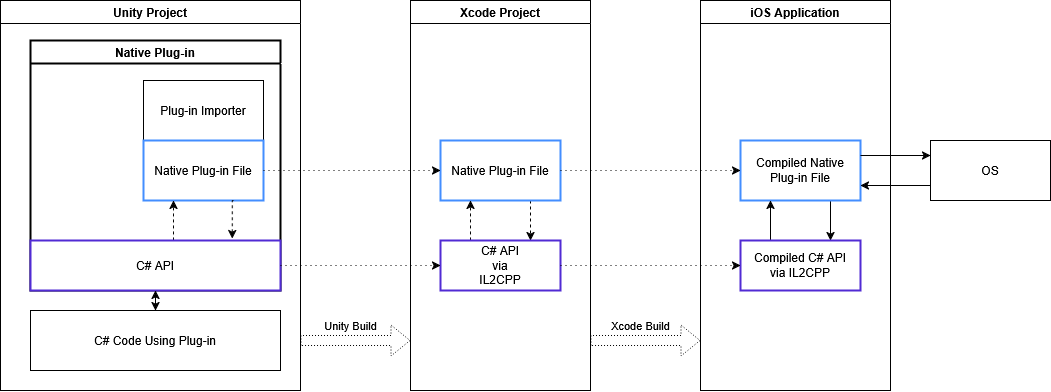

The following diagram shows how these components work together:

Diagram showing the structure of a native plug-in for iOS

Development considerations for native iOS plug-ins

When developing a native plug-in, you must account for multiple variations and factors to ensure broad compatibility. For example, consider the following:
  • Project type: The generated Xcode project can be Objective-C or Swift.
  • Platforms: Your plug-in might need to support iOS, tvOS, and visionOS platforms.
  • SDK and architecture: It's recommended to provide binaries for both device (Arm) and simulator (Intel or Arm) SDKs.
  • In-Editor fallback: Provide a fallback or simulated functionality for when your code runs in the Unity Editor.
  • Unity versioning: Aim to create a single plug-in that can be installed across multiple versions of Unity.
  • Initialization timing: The initialization timing of the
    UnityFramework.framework
    and its global variables depends on whether you export a Swift or Objective-C Xcode project.
    • Swift projects: The framework initializes before the main function executes.
    • Objective-C projects: The framework initializes after the main function executes.
  • Unity as a Library: To ensure your integration works correctly with different build types, support both standard Unity builds and Unity as a Library integrations. In a standard build, the
    UnityFramework.framework
    is part of the generated Xcode project. In a Unity as a Library integration,
    UnityFramework.framework
    is embedded directly into a host application.
