DisplayDialogComplex(string, string, string, string, string)

Displays a modal dialog with three buttons.
Read time 2 minutesLast updated 6 days ago

Definition

  • Type: Method
  • Namespace: UnityEditor
  • Assembly: UnityEditor.CoreModule
public static int DisplayDialogComplex(string title, string message, string ok, string cancel, string alt)

Parameters

title

string
The title of the dialog box. If left null, defaults to "Unity".

message

string
Purpose for the dialog.

ok

string
Dialog function chosen.

cancel

string
Close dialog with no operation.

alt

string
Choose alternative dialog purpose.

Returns

Type

Description

intReturns the ID of a button. IDs are 0, 1, or 2 and they correspond to the
ok
,
cancel
and
alt
buttons respectively. An ID of 1, which corresponds to
cancel
, returns if the dialog is closed or the user presses the Escape key.

Remarks

Use it for displaying message boxes in the Editor. If
message
is null or whitespace, an
ArgumentNullException
is thrown. If
messageText
is longer than 512 characters, it is truncated and the full message is logged to the console in markdown format.
DisplayDialogComplex is similar to EditorUtility.DisplayDialog. This
DisplayDialogComplex
member shows a dialog with three buttons. These buttons represent
ok
,
cancel
and
alt
. DisplayDialogComplex returns an integer 0, 1 or 2 corresponding to the
ok
,
cancel
and
alt
buttons.
The
ok
button is the default option, and can also be activated by pressing Enter.
The
cancel
button is considered the "cancel" button and should usually not perform any action. On a PC, this can also be activated by pressing Escape or by clicking the dialog window close button. On a Mac, this can also be activated by pressing Escape, provided the button is called "Cancel".
The
alt
button allows you to provide the user with an alternative choice in addition to the
ok
and
cancel
buttons. This button does not have a fixed keyboard shortcut.
If any button's text is longer than 64 characters, an
ArgumentException
is thrown.
On macOS, the orientation of the buttons may be horizontal or vertical depending on the length of the message. Additionally, if the layout is horizontal, the button layout is different from Windows or Linux, with the default button on the right and the alternate button on the far left.
Note:
EditorUtility.DisplayDialog
and
EditorUtility.DisplayDialogComplex
are kept for backwards compatibilty. For new code, it is strongly recommended to use one of the new EditorDialog methods.
Additional Resources:

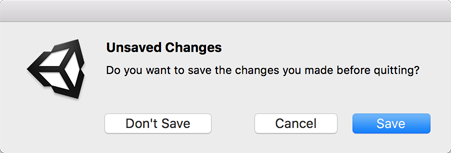

EditorUtilityDisplayDialogComplex osx (DisplayDialogComplex(string, string, string, string, string))
// UPDATE
macOS display dialog buttons for the example below.

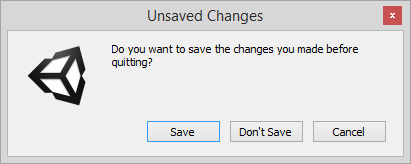

EditorUtilityDisplayDialogComplex pc (DisplayDialogComplex(string, string, string, string, string))
// UPDATE
PC display dialog buttons for the example below.
