使用示例:在赛季结束时用游戏内货币奖励排名靠前的玩家

此使用示例演示了如何在赛季结束时使用游戏内货币奖励排名靠前的玩家。此示例使用 Leaderboards 服务发出的 reset 事件,并在 Economy 中用游戏内货币奖励排名靠前的玩家。

先决条件

首先需要创建具有所需访问角色的服务帐户,并配置 UGS CLI

使用服务帐户进行身份验证

在调用 Triggers 服务之前,需要使用服务帐户进行身份验证。

  1. 导航到 Unity Cloud Dashboard
  2. 选择 Administration(管理)> Service Accounts(服务帐户)
  3. 选择 **New(新建)**按钮并输入服务帐户的名称和描述。
  4. 选择 Create(创建)

添加产品角色并创建密钥:

  1. 选择 Manage product roles(管理产品角色)
  2. 将以下角色添加到服务帐户:
    • 从 LiveOps 下拉选单中,选择以下角色:
      • Triggers Configuration Editor(Triggers 配置编辑者)
      • Triggers Configuration Viewer(Triggers 配置查看者)
      • Economy Resource Editor(Economy 资源编辑者)
      • Economy Resource Viewer(Economy 资源查看者)
      • Leaderboards Admin(Leaderboards 管理员)
      • Leaderboards Viewer(Leaderboards 查看者)
      • 如果要部署 Cloud Code 模块,请添加以下角色:
        • Cloud Code Editor(Cloud Code 编辑者)
        • Cloud Code Viewer(Cloud Code 查看者)
      • 如果要部署 Cloud Code 脚本,请添加以下角色:
        • Cloud Code Editor(Cloud Code 编辑者)
        • Cloud Code Viewer(Cloud Code 查看者)
        • Cloud Code Publisher(Cloud Code 发布者)
    • 从 Admin(管理)下拉选单中,选择 Unity Environments Viewer(Unity 环境查看者)
  3. 选择 Save(保存)
  4. 选择 Add Key(添加密钥)
  5. 使用 base64 编码方式对 **Key ID(密钥 ID)**和 **Secret key(密钥)**进行编码。格式为“key_id:secret_key”。请记下此值。

如需了解更多信息,请参阅身份验证

配置 UGS CLI

按照以下步骤操作以开始使用 UGS CLI:

  1. 安装 UGS CLI

  2. 使用以下命令配置您的 Project ID 和环境:
    ugs config set project-id <your-project-id>
    ugs config set environment-name <your-environment-name>

  3. 使用您先前验证身份的服务帐户进行身份验证。请参阅接受身份验证

检查 reset 事件

在重置排行榜时,Leaderboards 服务发出 reset 事件。事件有效负载如下所示:

{
  "leaderboardId": "string",
  "leaderboardVersionId": "string"
}

事件有效负载作为参数传递给 Cloud Code。

请参阅 Leaderboards 重置事件以了解更多信息。

创建部署文件

此示例的实现方法是使用 UGS CLI 为每个服务部署相应的配置文件。

为了实现此使用示例,您需要设置以下文件:

  • COIN.ecc:包含 Economy 货币配置​​。
  • leaderboard.lb:包含 Leaderboards 配置。
  • triggers-config.tr:包含 Triggers 配置。
  • 一个 Cloud Code 模块或脚本,用于定义逻辑,以便在排行榜重置时使用游戏内货币奖励排名靠前的玩家。

创建一个名为 reward-top-players 的文件夹来存储所有文件。您可以一次性部署所有的这些文件。

设置 Economy

为了用游戏内货币奖励排名靠前的玩家,您需要在 Economy 中创建虚拟货币。

使用 UGS CLI 创建 Economy 配置文件:

ugs economy currency new-file COIN.ecc

COIN.ecc 文件中添加以下内容:

{
  "$schema": "https://ugs-config-schemas.unity3d.com/v1/economy/economy-currency.schema.json",
  "initial": 0,
  "name": "Coin"
}

该配置定义了虚拟货币和名称 Coin。文件名与货币 ID 相对应。

设置 Leaderboards

使用 UGS CLI 创建 Leaderboards 配置文件:

ugs leaderboards new-file leaderboard.lb

leaderboard.lb 文件中添加以下内容:

{
  "$schema": "https://ugs-config-schemas.unity3d.com/v1/leaderboards.schema.json",
  "SortOrder": "asc",
  "UpdateType": "keepBest",
  "Name": "leaderboard"
}

该配置定义了一个采用升序排序顺序的排行榜,用于保存最佳分数。文件名与排行榜 ID 相对应。

设置 Cloud Code

您需要创建 Cloud Code 模块或脚本来定义逻辑,以便在排行榜重置时使用游戏内货币奖励排名靠前的玩家。

Cloud Code C# 模块

您可以使用 Economy 和 Leaderboards Client SDK 来与 Economy 和 Leaderboards 服务进行交互。

使用 UGS CLI 创建新的 Cloud Code 模块:

ugs cc m new-file RewardTopPlayers RewardTopPlayers

然后,将以下内容添加到示例解决方案中。创建一个包含字符串参数 leaderboardId 的模块函数:

C#

using System;
using System.Collections.Generic;
using System.Threading.Tasks;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Logging;
using Unity.Services.CloudCode.Apis;
using Unity.Services.CloudCode.Core;
using Unity.Services.CloudCode.Shared;
using Unity.Services.Economy.Model;
using Unity.Services.Leaderboards.Model;

namespace RewardTopPlayers;

public class RewardTopPlayers
{
    private const string CoinsKey = "COIN";
    private const int Amount = 10;

    private readonly ILogger<RewardTopPlayers> _logger;
    public RewardTopPlayers(ILogger<RewardTopPlayers> logger)
    {
        _logger = logger;
    }

    [CloudCodeFunction("IssueReward")]
    public async Task Reward(IExecutionContext ctx, IGameApiClient gameApiClient, string leaderboardId, string leaderboardVersionId)
    {
        var top5Players = await GetTop5(ctx, gameApiClient, leaderboardId, leaderboardVersionId);
        foreach (var score in top5Players)
        {
            try
            {
                // Retrieve the player's configuration to ensure currency configuration is synced
                var configResponse = await gameApiClient.EconomyConfiguration.GetPlayerConfigurationAsync(ctx, ctx.ServiceToken, ctx.ProjectId, score.PlayerId);
                var res = await gameApiClient.EconomyCurrencies.IncrementPlayerCurrencyBalanceAsync(ctx, ctx.ServiceToken, ctx.ProjectId,
                    score.PlayerId,
                    CoinsKey, new CurrencyModifyBalanceRequest(amount: Amount), configResponse.Data.Metadata.ConfigAssignmentHash);
                _logger.LogInformation("Incremented balance for playerId {playerId} by {amount}", score.PlayerId, Amount);
            }
            catch (ApiException e)
            {
                _logger.LogError(e, "Failed to increment balance for playerId {playerId}. Error: {Error}", score.PlayerId, e.Message);
                throw;
            }
        }
    }


    public async Task<List<LeaderboardEntry>> GetTop5(IExecutionContext ctx, IGameApiClient gameApiClient, string leaderboardId, string leaderboardVersionId)
    {
        try
        {
            var results = await gameApiClient.Leaderboards.GetLeaderboardVersionScoresAsync(ctx, ctx.ServiceToken, new Guid(ctx.ProjectId),
                leaderboardId, leaderboardVersionId, 0, 5);
            return results.Data.Results;

        }
        catch (ApiException e)
        {
            _logger.LogError(e, "Failed to get top players for leaderboard: {LeaderboardId}. Error: {Error}", leaderboardId, e.Message);
            throw new Exception($"Failed to get top players for leaderboard: {leaderboardId}. Error: {e.Message}");
        }
    }

    public class ModuleConfig : ICloudCodeSetup
    {
        public void Setup(ICloudCodeConfig config)
        {
            config.Dependencies.AddSingleton(GameApiClient.Create());
        }
    }
}

Cloud Code JavaScript 脚本

您可以通过创建 Cloud Code 脚本来实现相同的结果。

使用 UGS CLI 创建新的 Cloud Code 脚本:

ugs cc s new-file RewardTopPlayers.js

然后,将以下内容添加到示例脚本文件中:

JavaScript

const axios = require("axios");
const { CurrenciesApi, ConfigurationApi } = require("@unity-services/economy-2.4");
const { LeaderboardsApi } = require("@unity-services/leaderboards-1.1");


module.exports = async ({ params, context, logger }) => {
  // Get top 5 players from the Leaderboard
  const leaderboardsApi = new LeaderboardsApi(context);
  const cointAmount = 10;

  let result;

  try {
    result = await leaderboardsApi.getLeaderboardVersionScores(context.projectId, params.leaderboardId, params.leaderboardVersionId, 0, 5);
  } catch (err) {
    logger.error("Failed to retrieve players from the leaderboard", { "error.message": err.message }, { "leaderboardId": params.leaderboardId });
    throw err;
  }

  const currencyId = "COIN";
  const currenciesApi = new CurrenciesApi(context);
  const configApi = new ConfigurationApi(context);


  // Reward currency to every player
  const promises = result.data.results.map(async (score) => {
    try {
      // Retrieve the player config to get the configAssignmentHash.
      // This is needed to ensure the currency is synced
      var config = await configApi.getPlayerConfiguration({
        playerId: score.playerId,
        projectId: context.projectId,
      });


      await currenciesApi.incrementPlayerCurrencyBalance({
        currencyId,
        playerId: score.playerId,
        projectId: context.projectId,
        configAssignmentHash: config.data.metadata.configAssignmentHash,
        currencyModifyBalanceRequest: { amount: cointAmount },
      });
    } catch (err) {
      logger.error("Failed to increment currency for player", { "error.message": err.message }, { "affectedPlayerId": score.playerId });
      return;
    }
  });

  await Promise.all(promises);
};

设置触发器

要将 Cloud Code 资源关联到计划,请创建触发器。触发器会在触发事件时(例如,排行榜重置时)执行 Cloud Code 脚本或模块。

ugs tr new-file triggers-config.tr

如果您创建了 Cloud Code 模块,请使用以下配置:

{
  "$schema": "https://ugs-config-schemas.unity3d.com/v1/triggers.schema.json",
  "Configs": [
    {
      "Name": "reward-leaderboard",
      "EventType": "com.unity.services.leaderboards.reset.v1",
      "ActionUrn": "urn:ugs:cloud-code:RewardTopPlayers/IssueReward",
      "ActionType": "cloud-code"
    }
  ]
}

如果您创建了 Cloud Code 脚本,请使用以下配置:

{
  "$schema": "https://ugs-config-schemas.unity3d.com/v1/triggers.schema.json",
  "Configs": [
    {
      "Name": "reward-leaderboard",
      "EventType": "com.unity.services.leaderboards.reset.v1",
      "ActionUrn": "urn:ugs:cloud-code:RewardTopPlayers",
      "ActionType": "cloud-code"
    }
  ]
}

部署配置文件

您的 reward-top-players 文件夹中应该有以下文件:

  • COIN.ecc - 包含 Economy 货币配置​​。
  • leaderboard.lb - 包含 Leaderboards 配置。
  • triggers-config.tr - 包含 Triggers 配置。

及以下之一:

  • RewardTopPlayers.sln 文件夹 - 包含 Cloud Code 模块。
  • RewardTopPlayers.js - 包含 Cloud Code 脚本。

您可以使用 UGS CLI 一次性部署所有的这些文件:

ugs deploy .

可选:向排行榜添加分数

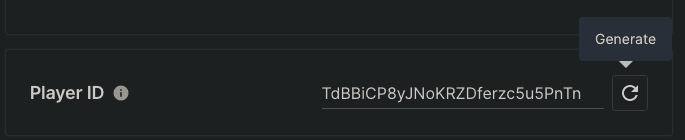

您可以运行以下 Cloud Code 脚本,从 Unity Cloud Dashboard 向排行榜添加分数。请确保在每次测试运行时重新生成玩家 ID 令牌,以便添加新玩家。

JavaScript

const { LeaderboardsApi } = require("@unity-services/leaderboards-1.1");
const _ = require("lodash-4.17");

module.exports = async ({ params, context, logger }) => {

  const leaderboardsApi = new LeaderboardsApi({ accessToken: context.accessToken });
  const leaderboardID = "leaderboard";

  var randomScore = _.random(1, 100);
  try {
    await leaderboardsApi.addLeaderboardPlayerScore(context.projectId, leaderboardID, context.playerId, { score: randomScore });

  } catch (err) {
    logger.error("Failed to add score to the leaderboard", { "error.message": err.message });
  }
};

这样就可以向排行榜添加分数并测试该使用示例。

验证结果

要验证结果,请在重置排行榜之前记下排行榜上的一个玩家 ID:

  1. 导航到 Unity Cloud Dashboard
  2. 选择 Products(产品)> Leaderboards
  3. 选择 **Overview(概览)**部分。
  4. 选择 leaderboard 排行榜。
  5. 选择 **Entries(条目)**选项卡。
  6. 记下排名靠前的玩家 ID 之一。

然后,重置该排行榜:

  1. 导航到 Unity Cloud Dashboard
  2. 选择 Products(产品)> Leaderboards
  3. 选择 **Overview(概览)**部分。
  4. 选择 leaderboard 排行榜。
  5. 选择 Reset Leaderboard(重置排行榜)
  6. 启用 Archive current scores(存档当前分数)

要验证玩家是否获得了 10 个游戏币的奖励,请按照以下步骤操作:

  1. 选择 Products(产品)> Player Management(玩家管理)
  2. 在搜索字段中,输入您先前记下的玩家 ID,然后选择 Find Player(查找玩家)
  3. 导航到 Economy > **Currencies(货币)**部分。如果成功,您会发现玩家已获得 10 个游戏币的奖励。

要详细了解如何配置排行榜重置以补充游戏逻辑,请参阅重置
