Structure of a Unity Xcode project

Understand the structure of a Unity Xcode project.
Read time 4 minutesLast updated 5 days ago
When you build a Unity project for the iOS platform, Unity creates a folder that contains an Xcode project. You need to build and sign this project before you deploy it on a device or distribute it on the App Store.
Note
You can modify a generated Xcode project using Xcode.PBXProject.
Every generated Unity iOS Xcode project has the following structure and targets:

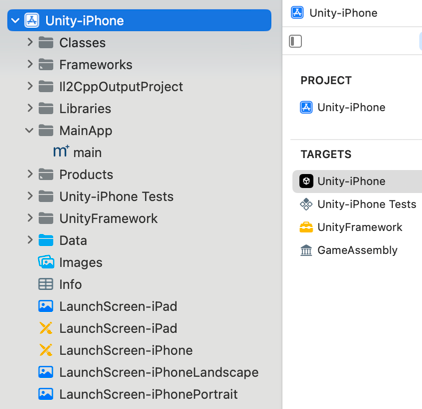

Unity iOS Xcode project structure

The Xcode project includes the Xcode project file
xcodeproj
, and framework links that only appear in the Xcode project navigator. Apart from the default folders, you can create custom folders to add your custom files.

Project targets

  • Unity-iPhone: A thin launcher part that runs the UnityFramework. It includes the
    MainApp
    folder and app representation data such as Launch Screens,
    .xib
    files, icons, data, and
    Info.plist
    files. The Unity-iPhone target has a single dependency on the UnityFramework target.
  • UnityFramework: The target that produces the
    UnityFramework.framework
    bundle. It includes the Unity runtime,
    Classes
    ,
    UnityFramework
    , and
    Libraries
    folders, along with dependent frameworks.
    UnityFramework
    folder includes privacy manifest file (PrivacyInfo.xcprivacy), a consolidated privacy manifest file for Unity runtime, Unity plug-ins, packages, and your project.
  • GameAssembly: A container for your C# code translated as C++ code. To build it, Xcode uses the IL2CPP tool that Unity includes in every generated Xcode project. The build produces:
    • libGameAssembly.a
      : A static library that contains all the project's managed code, cross-compiled to C++, and built for iOS.
    • il2cpp.a
      : A static library that contains the IL2CPP runtime code to support your managed code.
Note
Use PBXProject.GetUnityFrameworkTargetGuid() to get the UnityFramework target GUID and PBXProject.GetUnityMainTargetGuid() to get the Unity-iPhone target GUID.

Classes folder

The
Classes
folder contains code that integrates the Unity runtime and Objective-C. Unity stores the entry points of the application in the
main.mm
and
UnityAppController.mm/h
files inside this folder. You can create your own
AppDelegate
derived from
UnityAppController
, or, if any of your plug-ins include
AppController.h
, you can include
UnityAppController.h
instead. If your
Plugins/iOS
folder includes
AppController.mm/h
, you can merge and rename them.
The
InternalProfiler.h
file defines a compiler conditional to enable the internal profiler. The code in this folder doesn't change often, and you can place custom classes here. If you select the Append mode, Xcode preserves changes to this folder between builds. However, this function doesn’t support multiple build targets and requires a fixed structure of the
Libraries
folder.
Unity's internal profiler is fast and unobtrusive, and feeds basic information about:
  • Which subsystem is taking most of the frame time.
  • The .NET heap size.
  • GC event count and duration.

Data folder

This folder contains your application’s serialized assets and .NET assemblies (
.dll
or
.dat
files) as either full code or metadata, depending on code stripping settings. The
machine.config
file sets up various .NET services such as security and WebRequest. Xcode refreshes the contents of this folder with every build. You shouldn't make any changes to it.
By default, the
Data
folder's Target Membership is the Unity-iPhone target, and Unity runtime searches for it in the
mainBundle
. To change the default bundle where Unity runtime looks for the
Data
folder, call
setDataBundleId: "com.my.product"
on the UnityFramework instance before you call one of the run functions. For example, if you want to have
Data
together with the UnityFramework call, use
setDataBundleId: "com.unity3d.framework"
and set the Target Membership to UnityFramework.

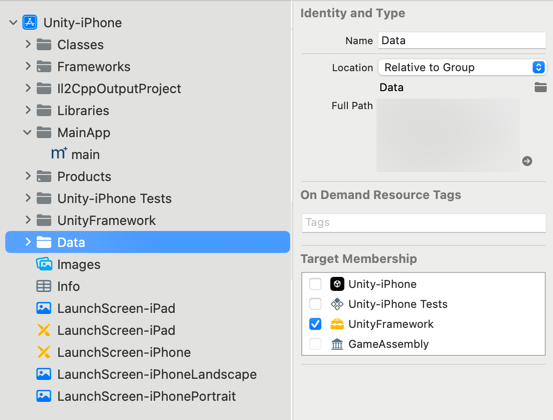

Data folder with the Target Membership set to UnityFramework.

Note
On-Demand Resources are only supported when the
Data
folder is a part of the Application target and not a part of the
UnityFramework
target.

Libraries folder

The
Libraries
folder contains
libil2cpp.a
for IL2CPP. The
libiPhone-lib.a
file is the Unity runtime static library, and
RegisterMonoModules.cpp
binds Unity native code with .NET. Xcode refreshes the contents of this folder with every build. You shouldn't make any changes to it.

Graphic files

Icons and splash screens (
.png
files) are located in asset catalogs in the
Unity-iPhone
folder. Unity automatically manages these files. Launch screens, their XML Interface Builders (
.xib
files), and Storyboard files are stored in the project’s root folder. You can configure these files in the
Player Settings

?

window (menu: Edit >
Project Settings

?

> Player Settings). Make sure the custom launch images that you create adhere to Apple’s Human Interface Guidelines.

Property list (.plist) file

You can manage the
Info.plist
file within the Unity-iPhone target (accessed via
mainBundle
) from Unity's Player Settings window (menu: Edit > Project Settings > Player Settings > Other Settings > Identification). Unity updates this file rather than replacing it while building the Player. Don't make changes to it unless you need to.
The
/UnityFramework/Info.plist
file, accessed via
bundleWithIdentifier:@"com.unity3d.framework"
, is a part of
UnityFramework
. You can keep values in this file instead of the
Info.plist
file of the
mainBundle
. This makes sure that you can still get these values if
UnityFramework
is moved into another application, for example, when using Unity as a Library.
