CreateDetailsViewController()
Creates a View Controller object that draws the Profiler module’s Details View in the Profiler window. Unity calls this method automatically when the module is selected in the Profiler window.
Read time 3 minutesLast updated 6 days ago
Definition
- Type: Method
- Namespace: Unity.Profiling.Editor
- Assembly: UnityEditor.CoreModule
public virtual ProfilerModuleViewController CreateDetailsViewController()
Returns
Type | Description |
|---|---|
| ProfilerModuleViewController | Returns a ProfilerModuleViewController derived object that draws the module’s Details View in the Profiler window. The default value is a view controller that displays a list of the module’s chart counters alongside their current values in the selected frame. |
Remarks

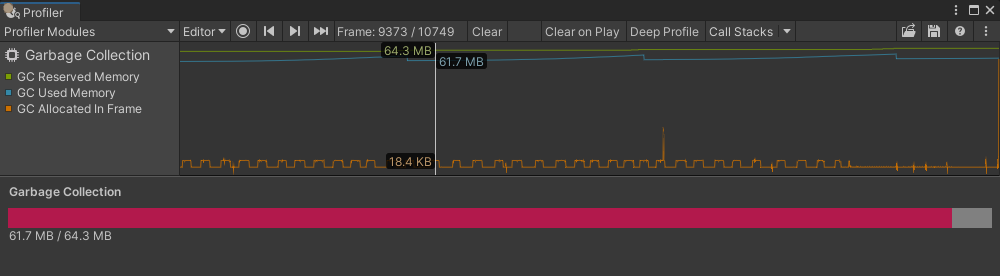

To present a bespoke visualization of your performance data when your module is selected, override this method. To do this, define a new ProfilerModuleViewController derived type, where the custom drawing can be implemented, and return a new instance of it in this method.
using System;using Unity.Profiling;using Unity.Profiling.Editor;using UnityEditor;using UnityEngine.UIElements;//--Module--[Serializable][ProfilerModuleMetadata("Garbage Collection")]public class GarbageCollectionProfilerModule : ProfilerModule{ static readonly ProfilerCounterDescriptor[] k_ChartCounters = new ProfilerCounterDescriptor[] { new ProfilerCounterDescriptor("GC Reserved Memory", ProfilerCategory.Memory), new ProfilerCounterDescriptor("GC Used Memory", ProfilerCategory.Memory), new ProfilerCounterDescriptor("GC Allocated In Frame", ProfilerCategory.Memory), }; // Specify a list of Profiler category names, which should be auto-enabled when the module is active. static readonly string[] k_AutoEnabledCategoryNames = new string[] { ProfilerCategory.Memory.Name, }; public GarbageCollectionProfilerModule() : base(k_ChartCounters, autoEnabledCategoryNames: k_AutoEnabledCategoryNames) { } public override ProfilerModuleViewController CreateDetailsViewController() { return new GarbageCollectionDetailsViewController(ProfilerWindow); }}//--Module Custom Drawing--public class GarbageCollectionDetailsViewController : ProfilerModuleViewController{ const string k_UxmlResourceName = "Assets/Editor/GarbageCollectionDetailsView.uxml"; const string k_UxmlElementId_GarbageCollectionDetailsView<b>BarFill = "garbage-collection-details-view</b>bar-fill"; const string k_UxmlElementId_GarbageCollectionDetailsView<b>BarLabel = "garbage-collection-details-view</b>bar-label"; static readonly ProfilerCounterDescriptor k_GcReservedMemoryCounterDescriptor = new ProfilerCounterDescriptor("GC Reserved Memory", ProfilerCategory.Memory); static readonly ProfilerCounterDescriptor k_GcUsedMemoryCounterDescriptor = new ProfilerCounterDescriptor("GC Used Memory", ProfilerCategory.Memory); VisualElement m_BarFill; Label m_BarLabel; public GarbageCollectionDetailsViewController(ProfilerWindow profilerWindow) : base(profilerWindow) { } protected override VisualElement CreateView() { var template = AssetDatabase.LoadAssetAtPath<VisualTreeAsset>(k_UxmlResourceName); var view = template.Instantiate(); m_BarFill = view.Q<VisualElement>(name: k_UxmlElementId_GarbageCollectionDetailsView__BarFill); m_BarLabel = view.Q<Label>(name: k_UxmlElementId_GarbageCollectionDetailsView__BarLabel); ReloadData(ProfilerWindow.selectedFrameIndex); ProfilerWindow.SelectedFrameIndexChanged += OnSelectedFrameIndexChanged; return view; } protected override void Dispose(bool disposing) { if (!disposing) return; ProfilerWindow.SelectedFrameIndexChanged -= OnSelectedFrameIndexChanged; base.Dispose(disposing); } void OnSelectedFrameIndexChanged(long selectedFrameIndex) { ReloadData(selectedFrameIndex); } void ReloadData(long selectedFrameIndex) { long gcReservedBytes = 0; long gcUsedBytes = 0; var selectedFrameIndexInt32 = Convert.ToInt32(selectedFrameIndex); using (var frameData = UnityEditorInternal.ProfilerDriver.GetRawFrameDataView(selectedFrameIndexInt32, 0)) { if (frameData == null || !frameData.valid) return; var gcReservedBytesMarkerId = frameData.GetMarkerId(k_GcReservedMemoryCounterDescriptor.Name); gcReservedBytes = frameData.GetCounterValueAsLong(gcReservedBytesMarkerId); var gcUsedBytesMarkerId = frameData.GetMarkerId(k_GcUsedMemoryCounterDescriptor.Name); gcUsedBytes = frameData.GetCounterValueAsLong(gcUsedBytesMarkerId); } float gcUsedBytesScalar = (float)gcUsedBytes / gcReservedBytes; m_BarFill.style.width = new Length(gcUsedBytesScalar * 100, LengthUnit.Percent); m_BarLabel.text = $"{EditorUtility.FormatBytes(gcUsedBytes)} / {EditorUtility.FormatBytes(gcReservedBytes)}"; }}//--Assets/Editor/GarbageCollectionDetailsView.uxml--<?xml version="1.0" encoding="utf-8"?><engine:UXML xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:engine="UnityEngine.UIElements" xmlns:editor="UnityEditor.UIElements" xsi:noNamespaceSchemaLocation="../../UIElementsSchema/UIElements.xsd"> <engine:Style src="GarbageCollectionDetailsView.uss"/> <engine:VisualElement name="garbage-collection-details-view"> <engine:Label name="garbage-collection-details-view__title-label" text="Garbage Collection"/> <engine:VisualElement name="garbage-collection-details-view__bar"> <engine:VisualElement name="garbage-collection-details-view__bar-fill"/> </engine:VisualElement> <engine:Label name="garbage-collection-details-view__bar-label"/> </engine:VisualElement></engine:UXML>//--Assets/Editor/GarbageCollectionDetailsView.uss--#garbage-collection-details-view{ flex-grow: 1; margin: 8px;}#garbage-collection-details-view__title-label{ -unity-font-style: bold; margin-bottom: 8px;}#garbage-collection-details-view__bar{ background-color: gray; flex-direction: row; height: 20px;}#garbage-collection-details-view__bar-fill{ background-color: #B2194C; position: absolute; height: 100%;}
Additional Resources: ProfilerModuleViewController.
