PlayableGraph, its nodes, and output

Describes the PlayableGraph and its main parts including the graph itself, its playable nodes, and playable outputs.
Read time 4 minutesLast updated 22 days ago
Use a
PlayableGraph
to mix, blend, and modify multiple data sources. You can then play the result through a
PlayableOutput
. Each
Playable
in a PlayableGraph can support animation, audio, or scripts.
The main parts of a
PlayableGraph
are as follows:

PlayableGraph

The PlayableGraph provides a flexible graph with time-based synchronization of multiple data sources. The Unity Engine implements data sources for animation and audio. Use scripting to create custom data sources.
In comparison, the Mecanim animation system includes a state machine graph that you can use to create transitions between animation states. The state machine graph only supports animation.
The PlayableGraph defines a set of playable outputs bound to a GameObject or a component. The PlayableGraph also defines playables and their relationships with each other.

A sample PlayableGraph

The PlayableGraph manages the lifecycle of its playables and their outputs. The following lists a few of the most commonly used PlayableGraph methods:
  • Create a new PlayableGraph with the
    PlayableGraph.Create()
    static method.
  • Play a PlayableGraph with the
    PlayableGraph.Play()
    method.
  • Stop a playing PlayableGraph with the
    PlayableGraph.Stop()
    method.
  • Manually evaluate the state of a PlayableGraph with the
    PlayableGraph.Evaluate()
    method.
  • Connect two playables together with the
    PlayableGraph.Connect()
    method.
  • Destroy a PlayableGraph manually with the
    PlayableGraph.Destroy()
    method. This method automatically destroys all playables and playable outputs created by the PlayableGraph. If you don't destroy a PlayableGraph, Unity issues an error message.
For a full list of PlayableGraph methods and for more details, refer to the PlayableGraph struct in the Scripting Reference.

Playable

A playable is a C# struct that implements the
IPlayable
interface. A playable is a node that connects to other playables and defines its relationship with other playables.

Core playable types

Unity implements core playable types as C# structs to avoid allocating memory for garbage collection. The
Playable
class defines a few basic methods and is the base type for all playables. The
PlayableExtensions
static class provides most of the methods for interacting with playables.
Because
Playable
is the base type for all playables, you can implicitly cast a playable to it. However, the opposite isn't true. If you explicitly cast a
Playable
onto an incompatible type, it throws an exception.
The types that inherit from the
Playable
base type have additional, type specific methods. For example, the
AnimationClipPlayable
type includes specific methods for an animation clip encapsulated in a playable. To access type specific methods, you must cast your playable to the appropriate type.
Non-abstract playables have the
Create()
public static method which creates a playable of the corresponding type. The
Create()
method always takes a
PlayableGraph
as its first parameter, and that graph owns the new playable. Some playable types might require additional parameters.

Playable output

A playable output is a C# struct that implements an
IPlayableOutput
. It defines the output of a PlayableGraph.

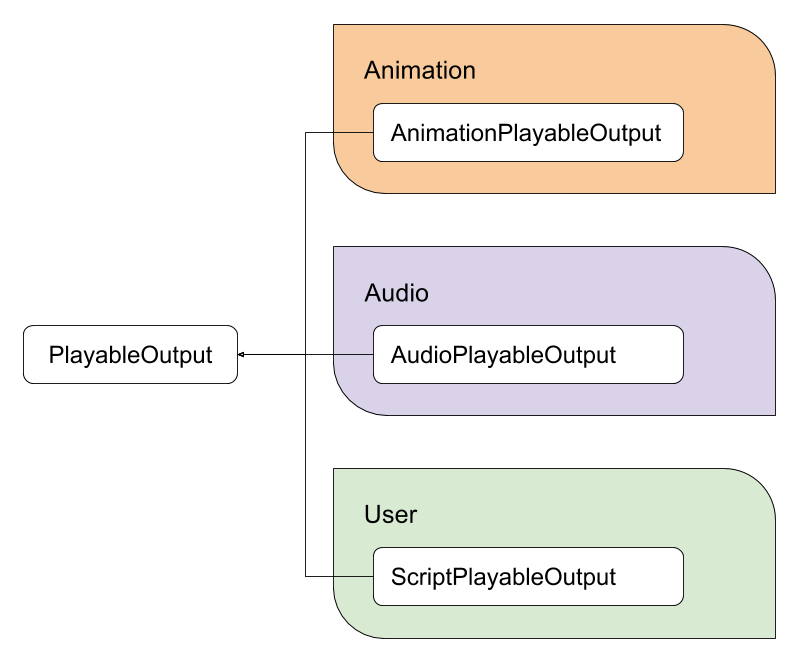

Core playable output types

Unity implements playable output types as C# structs to avoid allocating memory for garbage collection.
The
PlayableOutput
class defines a few basic methods and is the base type for all playable outputs. The
PlayableOutputExtensions
static class provides most of the methods for interacting with playable outputs.
It's recommended that you link a valid playable output to a playable. If a playable output isn't linked to a playable, the playable output does nothing. To link a playable output to a playable, use the
PlayableOutput.SetSourcePlayable()
method. The linked playable acts as the root for that specific playable output.
Non-abstract playable outputs have a public static method,
Create()
, that creates a playable output of the corresponding type. The
Create()
method always takes a PlayableGraph as its first parameter, and that graph owns the new playable output. Some playable output types might require additional parameters.
